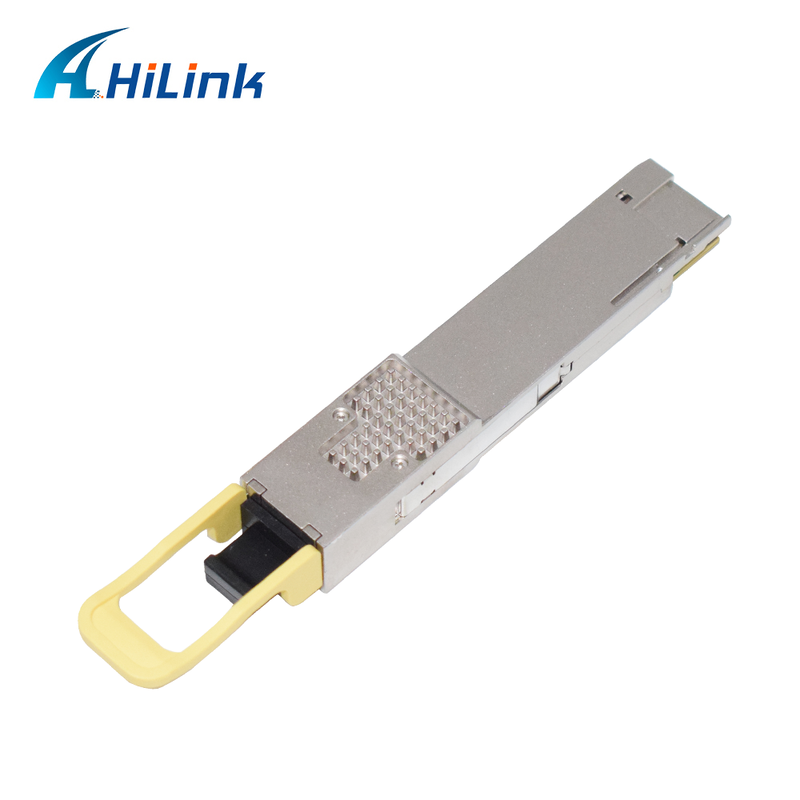

Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission

Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission

Lugar de origen:

Cantón, China

Nombre de la marca:

Hilink

Certificación:

CE RoHs

Número de modelo:

HL-QDD-400G-SR4

Contacta con nosotros
Solicitar una cita
Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission
Detalles del producto
Nombre del producto:
400G QSFP-DD SR4
Velocidad de datos:
400g
Longitud de onda:
850nm
Distancia:
100m
Conector:
MPO-12
Garantía:
3 años
El tiempo de entrega:
3-7 días laborables
OEM:
apoyo
Condiciones de pago y envío
Cantidad de orden mínima
1 Uds.
Precio
200~260USD

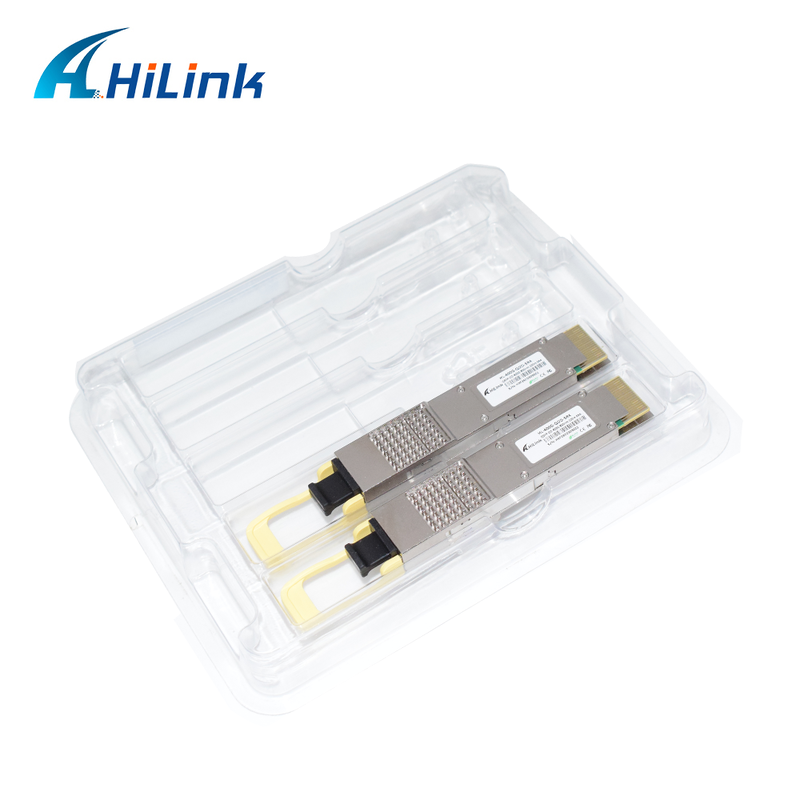

Detalles de empaquetado
Paquete normal u OEM
Tiempo de entrega
5-8 días laborables
Condiciones de pago
LC, T/T, Unión Occidental
Productos relacionados
Un buen precio. Hilink 10Gbps XFP Optical Transceiver with 80km Reach Duplex LC DDM Interface RoHS Compliant en línea

Hilink 10Gbps XFP Optical Transceiver with 80km Reach Duplex LC DDM Interface RoHS Compliant

Consiga el mejor precio
Un buen precio. Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission en línea

Hilink Compatible 400G QSFP-DD SR4 Optical Module with MPO-12 Connector for 100m Transmission

Consiga el mejor precio
Un buen precio. Transceptores BIDI de 25 Gb/s y 40 Km 1270/1310nm SFP28 en línea

Transceptores BIDI de 25 Gb/s y 40 Km 1270/1310nm SFP28

Consiga el mejor precio
Un buen precio. 25G SFP28 BIDI Transceptor DDM de 50 km en línea

25G SFP28 BIDI Transceptor DDM de 50 km

Consiga el mejor precio
Contacta con nosotros
Contacta ahora
Descripción del producto
Hilink Compatible Module HL-QDD-400G-SR4 400G QSFP-DD SR4 850nm 100m MPO-12
Product Overview

This 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module is designed for 100m optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of optical signals, and multiplexes them into a single channel for 400Gb/s optical transmission. On the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of optical signals, and converts them to 8 channels of 50Gb/s (PAM4) electrical output data.

An optical fiber cable with an MPO-12 connector can be plugged into the QSFP-DD SR4 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. Electrical connection is achieved through a QSFP-DD MSA-compliant edge type connector. This product meets QSFP-DD MSA Type2 specifications and is designed to withstand harsh external operating conditions including temperature, humidity and EMI interference.

Key Features
  • QSFP-DD MSA Compliant
  • CMIS compliance
  • Optical Interface: IEEE 802.3db compliant
  • Electrical Interface: IEEE 802.3 2022 400GAUI-8
  • Support 425Gb/s aggregate bit rate
  • 4 Parallel optical lanes
  • MPO-12 connector
  • Maximum link length of 70m on OM3 or 100m on OM4
  • Operating case temperature 0 to 70℃
  • Maximum power consumption 8W
  • I2C interface for status monitoring and control
Applications
  • Ethernet networks
  • Telecommunications systems
  • Infiniband applications
Product Images

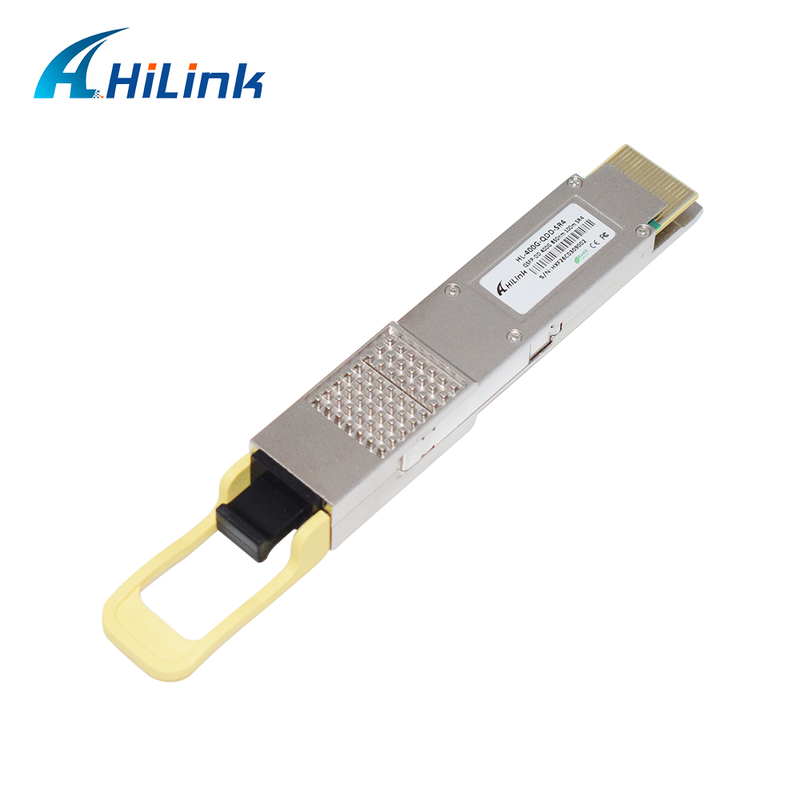

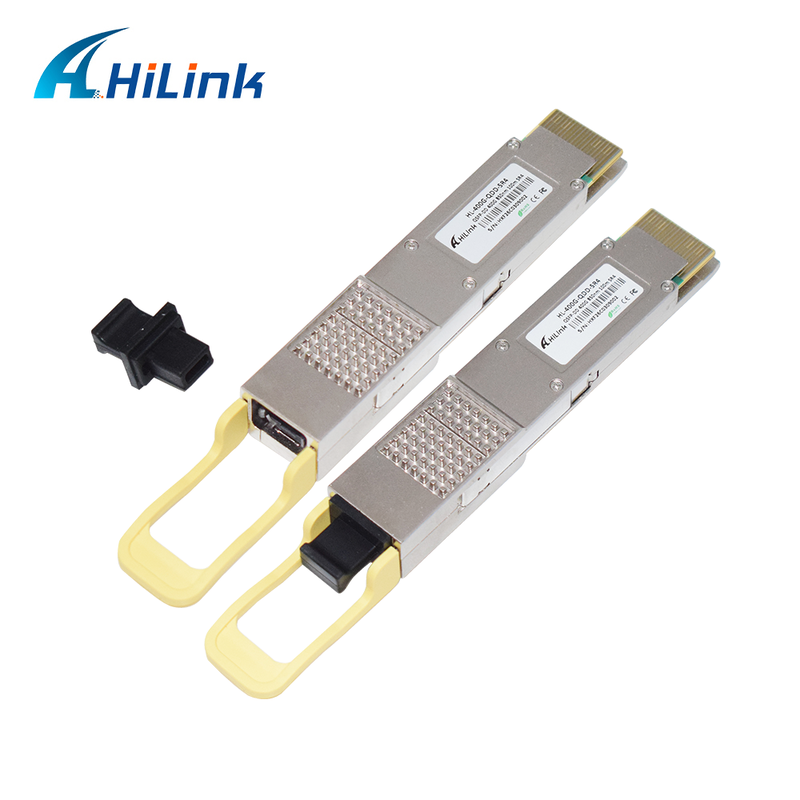

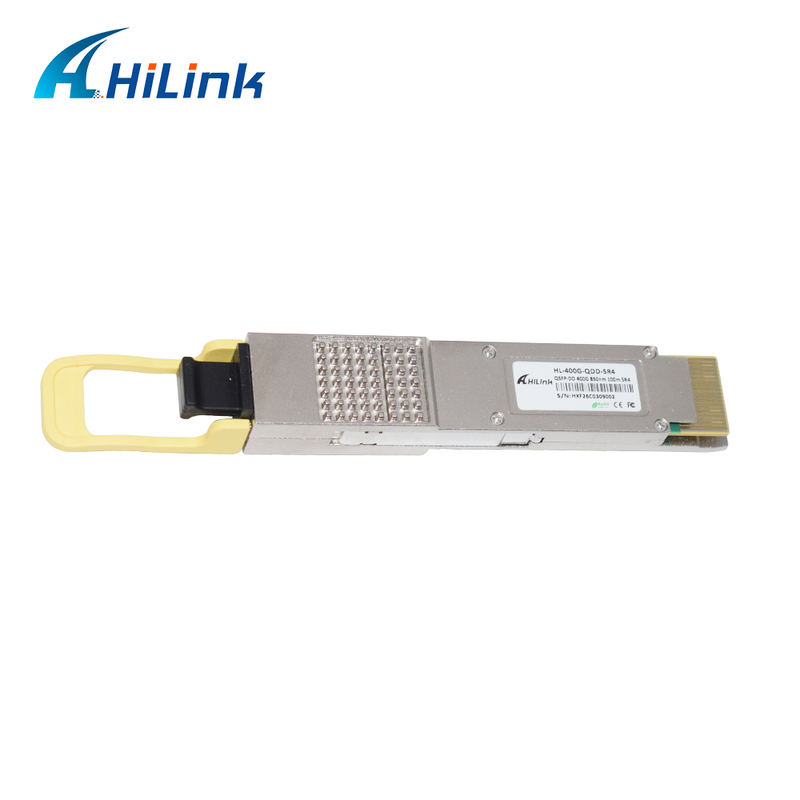

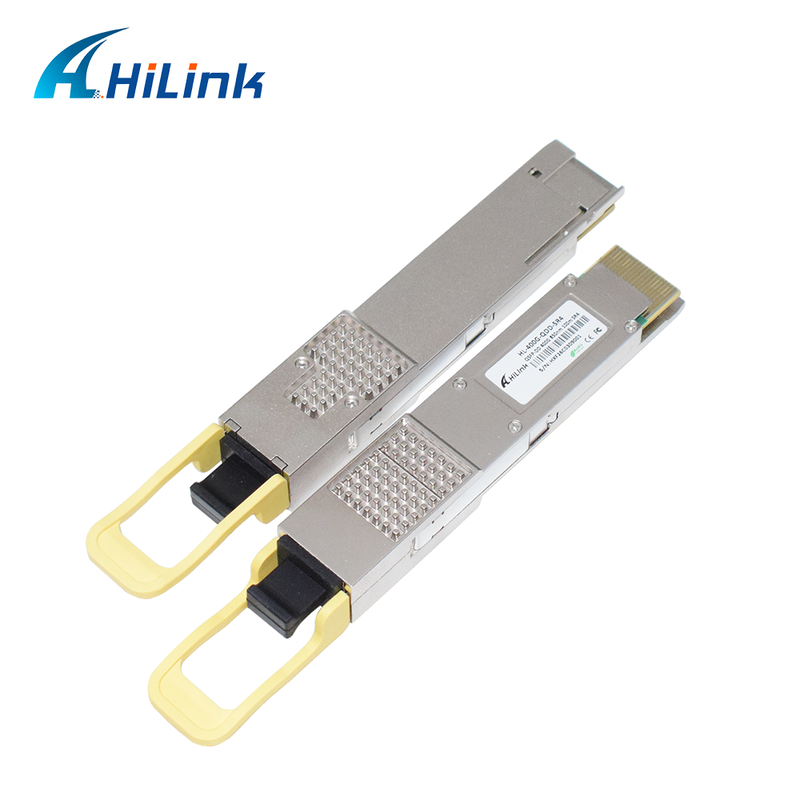

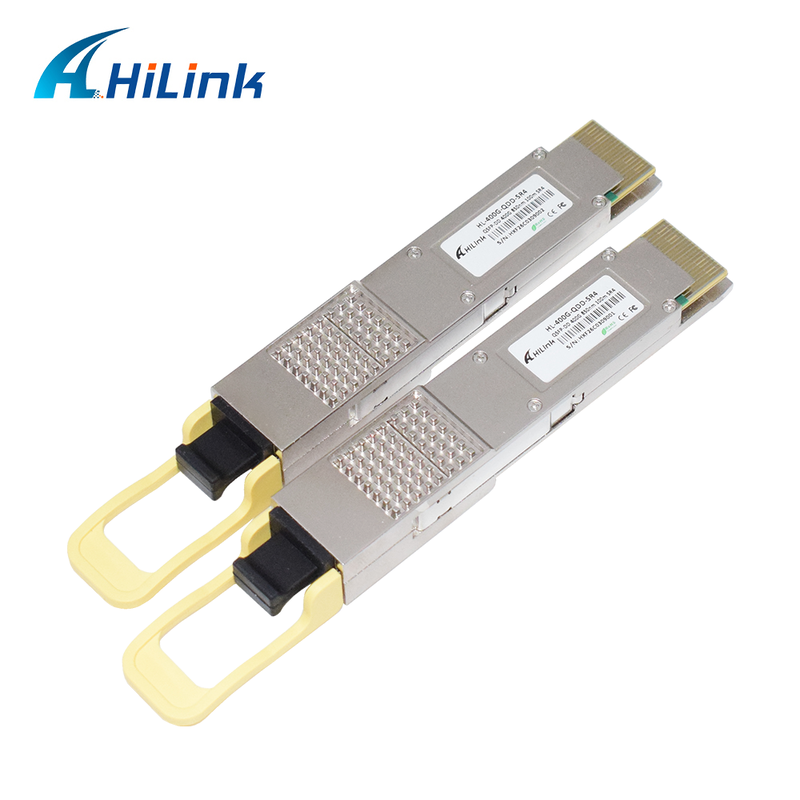

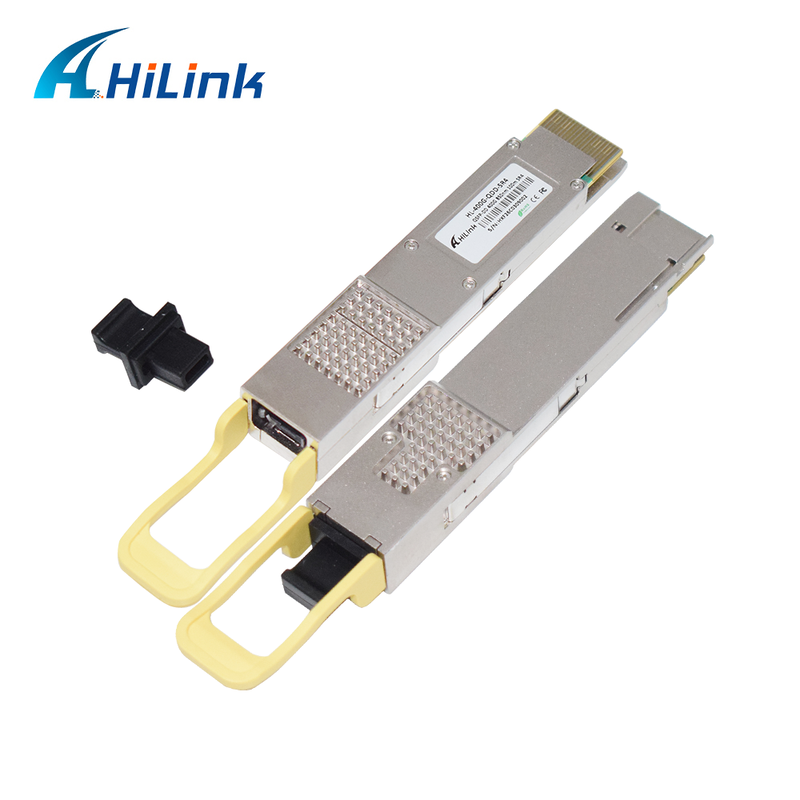

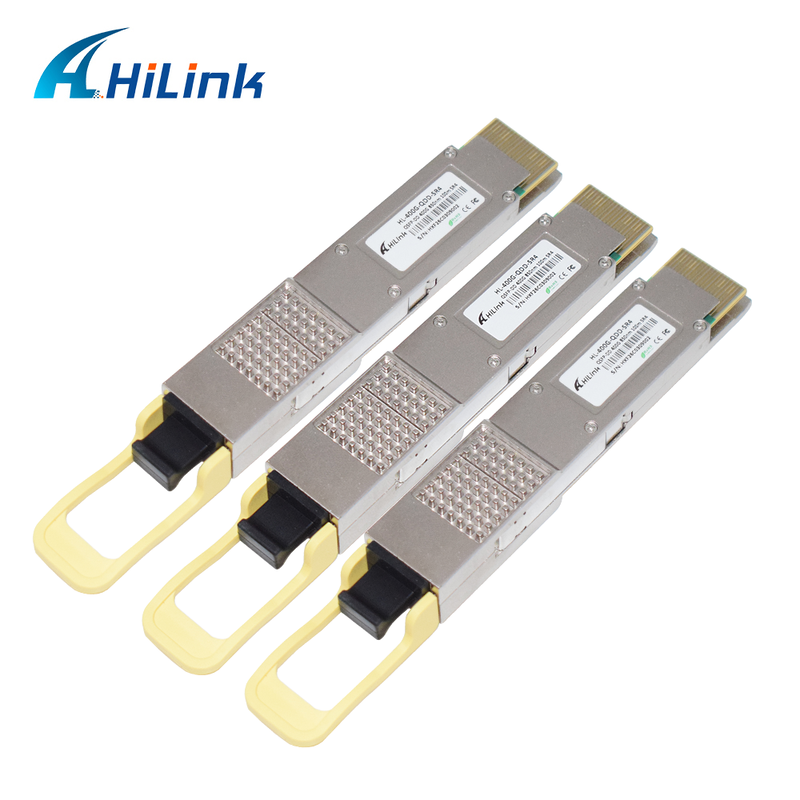

Hilink HL-QDD-400G-SR4 optical module front view Hilink HL-QDD-400G-SR4 optical module side view Hilink HL-QDD-400G-SR4 optical module technical specifications
Company Information
Hilink company certification and quality standards Hilink manufacturing facilities and production capabilities

OEM/ODM orders are available upon request.

Quality Guarantee

We guarantee that all advertised optical transceivers are brand new with new components and absolutely never use old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.

Product Portfolio

We supply a comprehensive range of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with most major brands. For detailed compatibility information, please contact us.

Frequently Asked Questions
Do you sell second-hand products?

No. All our products are brand new, and we never use second-hand components.

What payment terms do you accept?

We accept T/T, PayPal, and Western Union.

What shipping methods do you offer?

Our standard shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.

Do your products come with warranty?

Yes, we provide a 3-year warranty for all our products from the date of shipment.

What devices are your products compatible with?

Our products are compatible with mainstream network switches and equipment.

How to place an order?
  1. Confirm order details - provide the model and quantity you need
  2. Confirm Proforma Invoice - we'll arrange your order upon receipt of payment
  3. Confirm and ship goods - tracking number will be sent promptly
  4. We'll help track your shipment until safe delivery
