Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring

Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring

Lugar de origen:

Cantón, China

Nombre de la marca:

Hilink

Certificación:

CE RoHs

Número de modelo:

HL-QDD-400G-SR8

Contacta con nosotros
Solicitar una cita
Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring
Detalles del producto
Nombre del producto:
QDD-400G-SR8
Velocidad de datos:
400g
Longitud de onda:
850nm
Distancia:
100m
Conector:
MPO-16
Garantía:
3 años
Certificación:
RoHS
El tiempo de entrega:
3-7 días laborables
OEM:
Apoyo
Condiciones de pago y envío
Cantidad de orden mínima
1 Uds.
Precio
EXW Price: 120USD/PCS~130USD/PCS
Detalles de empaquetado
Paquete normal u OEM
Tiempo de entrega
5-8 días laborables
Condiciones de pago
LC, T/T, Unión Occidental
Productos relacionados
Un buen precio. Hilink 100G QSFP28 Optical Transceiver with 100km Distance 1295~1304nm Wavelength and SOA PIN Detector en línea

Hilink 100G QSFP28 Optical Transceiver with 100km Distance 1295~1304nm Wavelength and SOA PIN Detector

Consiga el mejor precio
Un buen precio. Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring en línea

Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring

Consiga el mejor precio
Un buen precio. Transceptor SFP de cobre Hilink HL-SFP-T con conector RJ-45 en línea

Transceptor SFP de cobre Hilink HL-SFP-T con conector RJ-45

Consiga el mejor precio
Un buen precio. Hilink 10-100BASE-T 100BASE-T 100M RJ45 Copper SFP Transceiver en línea

Hilink 10-100BASE-T 100BASE-T 100M RJ45 Copper SFP Transceiver

Consiga el mejor precio
Contacta con nosotros
Contacta ahora
Descripción del producto

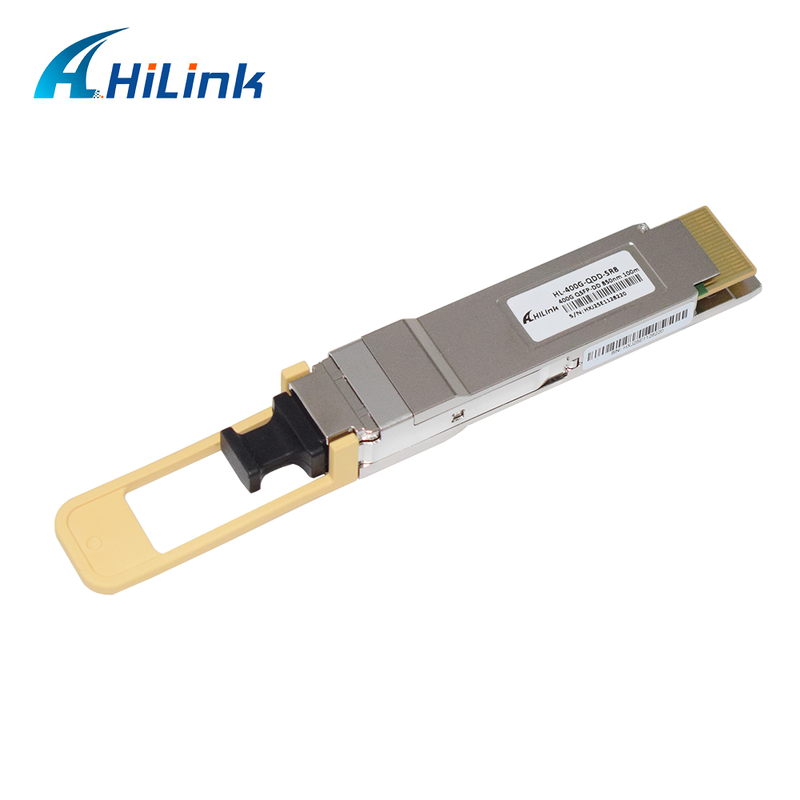

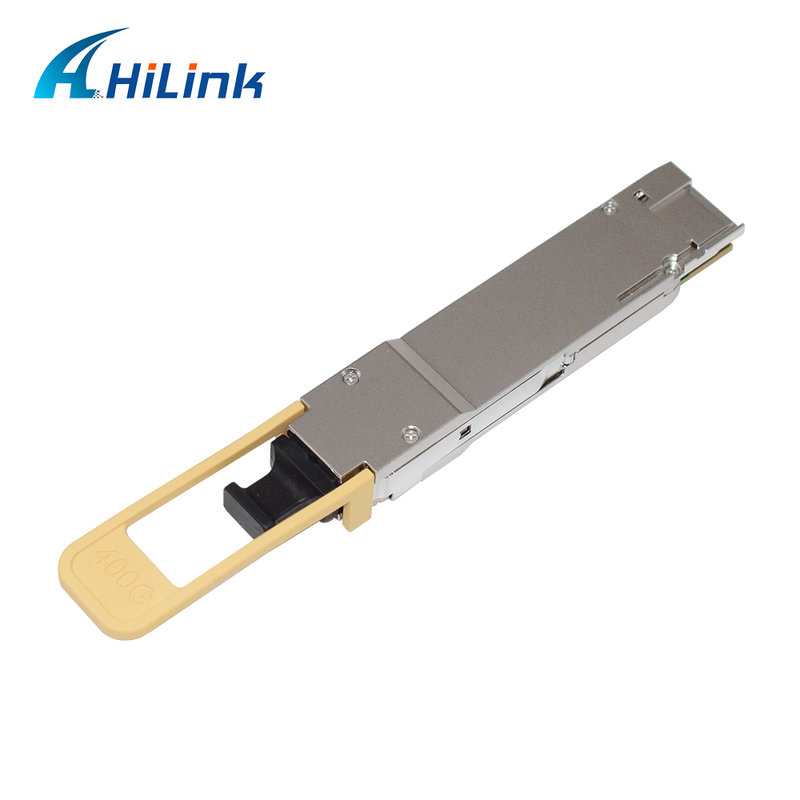

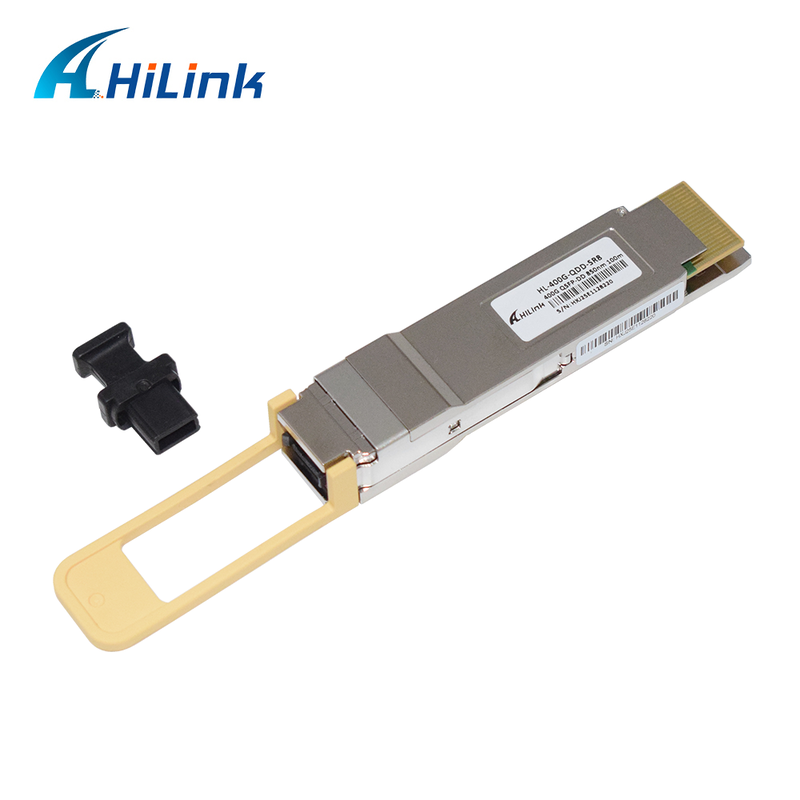

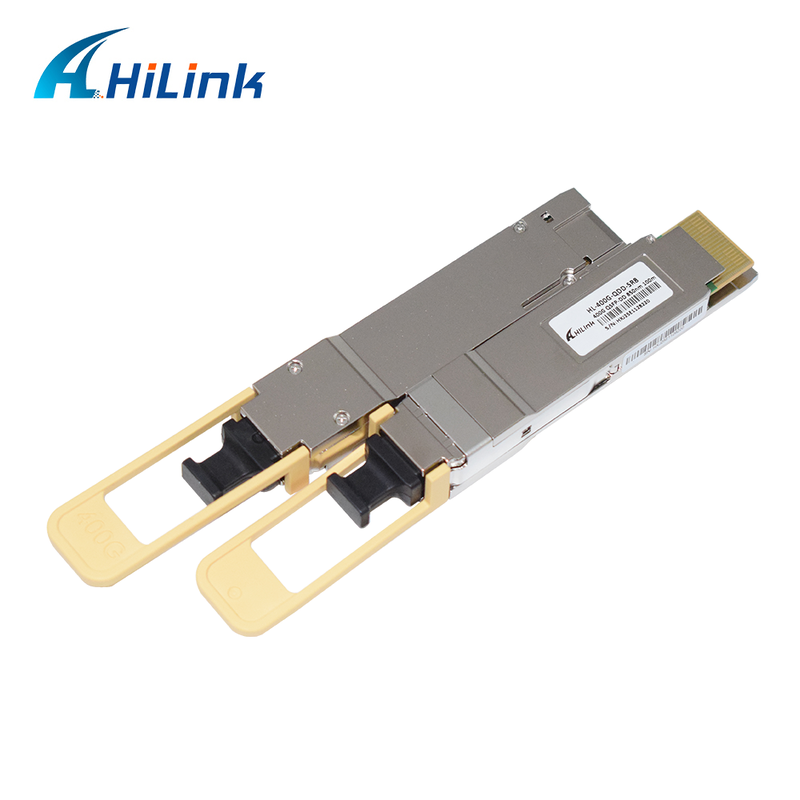

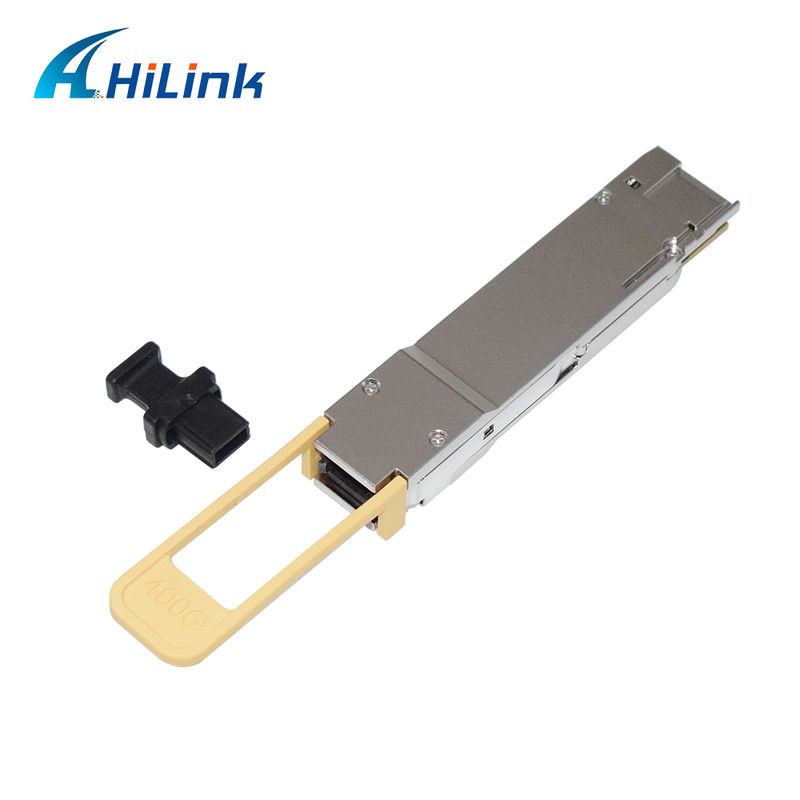

Hilink QDD-400G-SR8 Multi-mode 850nm 400G BASE-SR8 QSFP-DD Transceiver, With Diagnostic Monitoring
The QDD-400G-SR8 is an 8-channel, pluggable, fiber-optic QSFP-DD transceiver designed for 400Gbps SR8 applications. This high-performance module supports short-range data communication and interconnect applications, operating at 53.125Gbps per lane up to 70m using OM3 fiber and 100m using OM4 fiber. The optical interface uses MPO receptacles, while the electrical interface employs a 76-contact edge-type connector.
Key Features
  • Hot-pluggable QSFP-DD form factor
  • Data Rate: 53.125 Gb/s PAM4 per lane
  • 8x53Gbps PAM4 transmitter and PAM4 receiver
  • 8 channels 850nm VCSEL laser array and 8 channels PIN photo-detector array
  • Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
  • Digital diagnostics functions available via I2C interface
  • Single 3.3V Power Supply with Power Dissipation < 12W
  • MPO-16 connector
  • Operating Case Temperature: 0℃ to +70℃
  • RoHS compliant
Applications
  • 400G BASE-SR8 Ethernet
Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring 0 Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring 1
Company Information
Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring 2 Hilink QDD-400G-SR8 QSFP-DD Transceiver 400G Data Rate 850nm Wavelength MPO-16 Connector with Diagnostic Monitoring 3
OEM/ODM orders are available upon request.
Quality Guarantee
We guarantee that all advertised optical transceivers are brand new with new components and absolutely never use old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.
Product Portfolio
We supply a comprehensive range of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with most major brands. For detailed compatibility information, please contact us.
Frequently Asked Questions
  • Do you sell second-hand products?
    No. All our products are brand new, and we never use second-hand components.
  • What payment terms do you accept?
    We accept T/T, PayPal, and Western Union.
  • What shipping methods do you offer?
    Our standard shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.
  • Do your products come with warranty?
    Yes, we provide a 3-year warranty for all our products from the date of shipment.
  • What devices are your products compatible with?
    Our products are compatible with mainstream network switches and equipment.
  • How to place an order?
    1. Confirm order details - provide the model and quantity you need
    2. Confirm Proforma Invoice - we'll arrange your order upon receipt of payment
    3. Confirm and ship goods - tracking number will be sent promptly
    4. We'll help track your shipment until safe delivery
