Name: HL-SFP28-25G-SR 25Gbps SFP28 SR Dual LC Optical Transceiver with 850nm VCSEL and 100m Reach
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP28-25G-SR
Price: 130.00 USD
Availability: InStock

En casa > productos > Módulo óptico del transmisor-receptor >

HL-SFP28-25G-SR 25Gbps SFP28 SR Dual LC Optical Transceiver with 850nm VCSEL and 100m Reach

Lugar de origen:

Porcelana

Nombre de la marca:

Hilink or OEM

Certificación:

CE FCC ROSH

Número de modelo:

HL-SFP28-25G-SR

Contacta con nosotros

Solicitar una cita

HL-SFP28-25G-SR 25Gbps SFP28 SR Dual LC Optical Transceiver with 850nm VCSEL and 100m Reach

Detalles del producto

Velocidad de datos:

25 Gbps

Tipo de conector:

Tipo de láser:

VCSEL

Longitud de onda:

850nm

Distancia de transmisión:

100m

Temperatura de funcionamiento:

0°c~70°c

Condiciones de pago y envío

Cantidad de orden mínima

1 unidad

Precio

Negociable

Detalles de empaquetado

Normal o OEM

Tiempo de entrega

5-8 días laborables

Condiciones de pago

T/T, Unión Occidental, Paypal

Capacidad de la fuente

2000pcs por semana

Productos relacionados

HL-SFP28-25G-SR 25Gbps SFP28 SR Dual LC Optical Transceiver with 850nm VCSEL and 100m Reach

Consiga el mejor precio

HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

Consiga el mejor precio

el video

100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Transceptor óptico DOM

Consiga el mejor precio

el video

QSFP28-BX-D40 100G QSFP28 40KM 1304/1309nm Transceptor óptico BIDI EML+APD Transceptor SFP

Consiga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

HL-SFP28-25G-SR 25G SFP28 SR Dual LC Optical Transceivers

Product Overview

The HL-SFP28-25G-SR Transceiver is designed for 100m reach service at 25.78Gb/s and 10.3125Gb/s 850nm multi-mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It features low power consumption, operates on a 3.3V DC power supply, and is available in industrial temperature ranges.

Compliant with SFP28 MSA, SFF-8431 and SFF-8432 standards, this transceiver features a DML laser transmitter and PIN/TIA receiver with low jitter and low bit error rate. It utilizes internal clock and data recovery (CDR) units on transmitter and receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible, and the device is Class I laser safety compliant.

Key Features

25Gbps & 10Gbps serial optical interface
Rate Adaptation capability
850nm VCSEL transmitter and GaAs PIN PD receiver
Wide operating temperature range (0°C to 70°C)
Maximum link length of 70m via OM3 multimode fiber (MMF)
Maximum link length of 100m via OM4 multimode fiber (MMF)

Applications

Inter Rack Connection
High-speed Servers
High-performance Computing Clusters
SAN, Routers, Hubs, Load Balancer

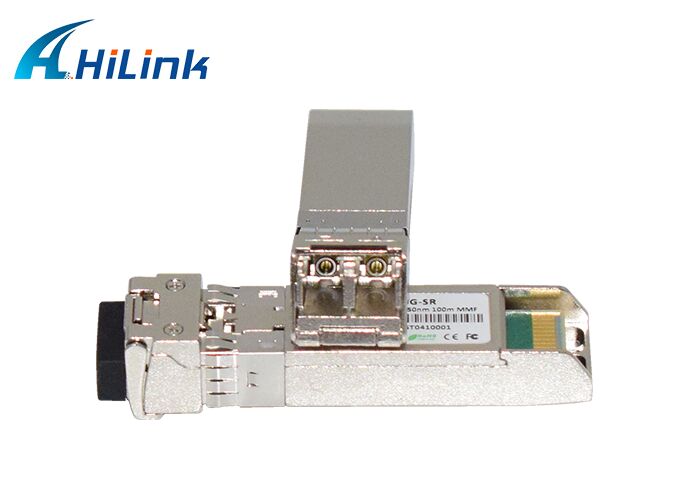

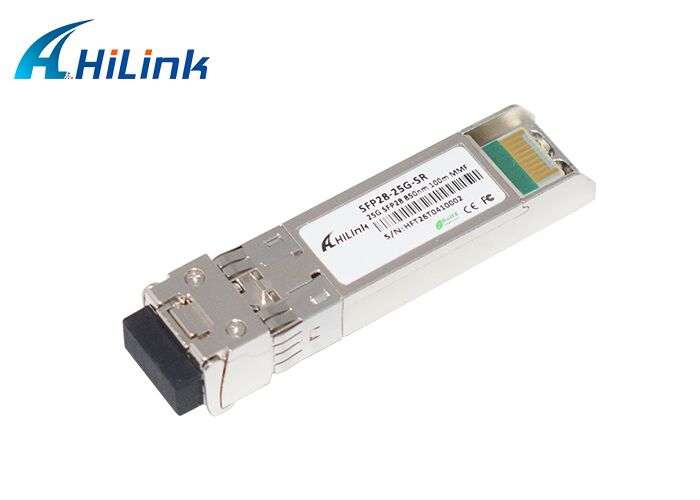

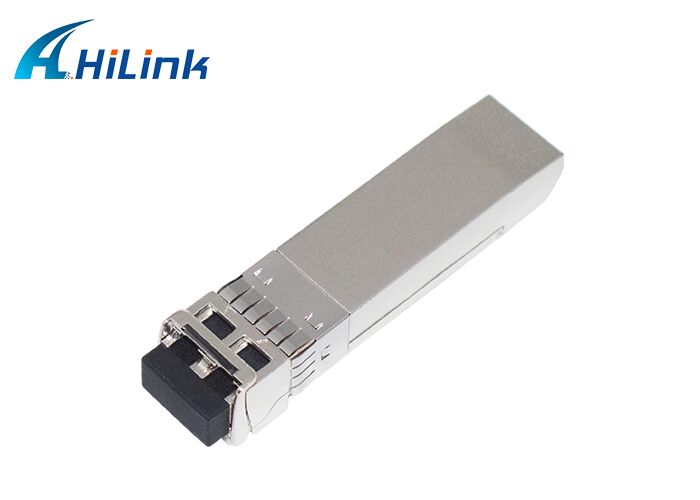

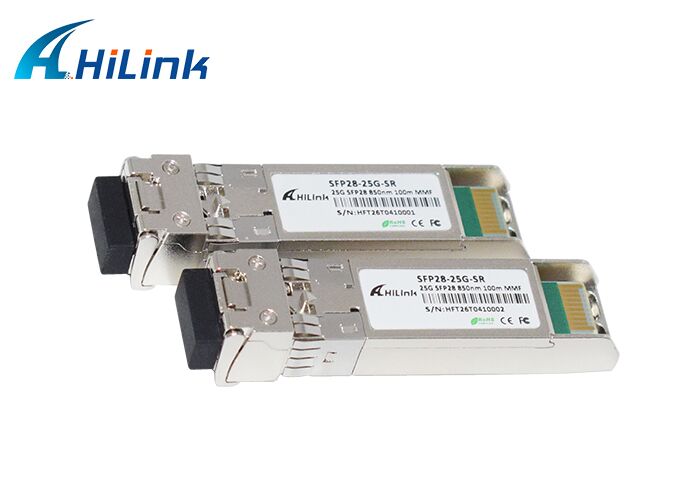

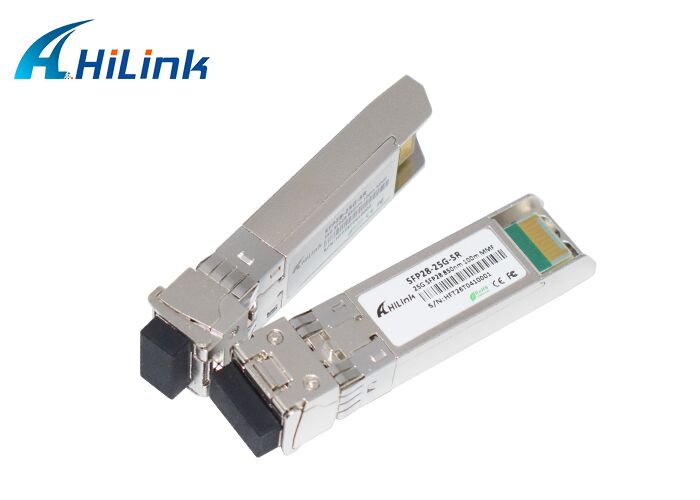

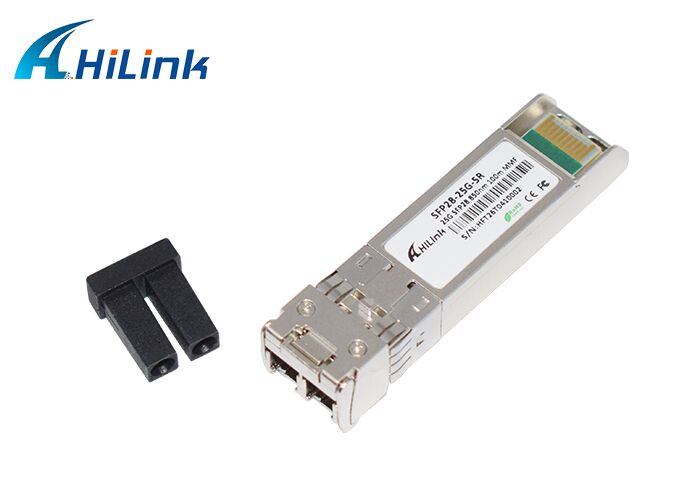

Product Images
