Name: Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP200G-LR8
Price: 130.00 USD
Availability: InStock

En casa > productos > Módulo óptico del transmisor-receptor >

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design

Lugar de origen:

Cantón, China

Nombre de la marca:

Hilink

Certificación:

CE RoHs

Número de modelo:

HL-QSFP200G-LR8

Contacta con nosotros

Solicitar una cita

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design

Detalles del producto

Nombre del producto:

QSFP200G-LR8

Velocidad de datos:

200g

Distancia:

10 kilómetros

Garantía:

3 años

Certificación:

RoHS

El tiempo de entrega:

3-7 días laborables

OEM:

Apoyo

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Precio

Negociable

Detalles de empaquetado

Paquete normal u OEM

Tiempo de entrega

5-8 días laborables

Condiciones de pago

LC, T/T, Unión Occidental

Productos relacionados

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Consiga el mejor precio

Hilink QDD-400G-SR8 Multi-mode 850nm 400G BASE-SR8 QSFP-DD Transceiver, With Diagnostic Monitoring

Consiga el mejor precio

el video

Transceptor Óptico QDD-400G-SR8 400G MMF 850nm QSFP-DD PAM4 100m DOM MTP/MPO-16

Consiga el mejor precio

QSFP56 200G Transceptor multimodo 850nm 200G BASE-SR4 QSFP56

Consiga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 10km Optical Transceiver (MPO16)

Feel free to contact us for details, compatibility, customization and wholesale pricing.

The HL-QSFP200G-LR8 is an eight-channel, pluggable, parallel, fiber-optic QSFP DD PSM8 transceiver designed for 2×100 Gigabit Ethernet and Infiniband DDR/EDR applications. This high-performance module integrates eight data lanes in each direction with 208 Gbps bandwidth, with each lane operating at 26Gbps up to 10km over G.652 single-mode fiber. The modules operate over single-mode fiber systems using a nominal wavelength of 1310nm, featuring a 76-contact edge type electrical connector and a 16-fiber MTP (MPO) optical connector.

Incorporating Hilink Technologies' proven circuit and optical technology, this transceiver provides reliable long life, high performance, and consistent service for demanding data communication and interconnect applications.

Key Features

8 channels full-duplex transceiver modules
Supports 8×25Gb/s aggregate bit rates
Supports 8×10Gb/s aggregate bit rates if required
8 channels 1310nm DFB
8 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Support CDR bypass
Low power consumption <6.5W
Hot Pluggable QSFP DD form factor
Up to 10km reach for G.652 SMF
Single male MPO16 (APC 8-degree) connector receptacle
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

Applications

2×100G Ethernet links
Infiniband DDR/EDR
Datacenter and Enterprise networking

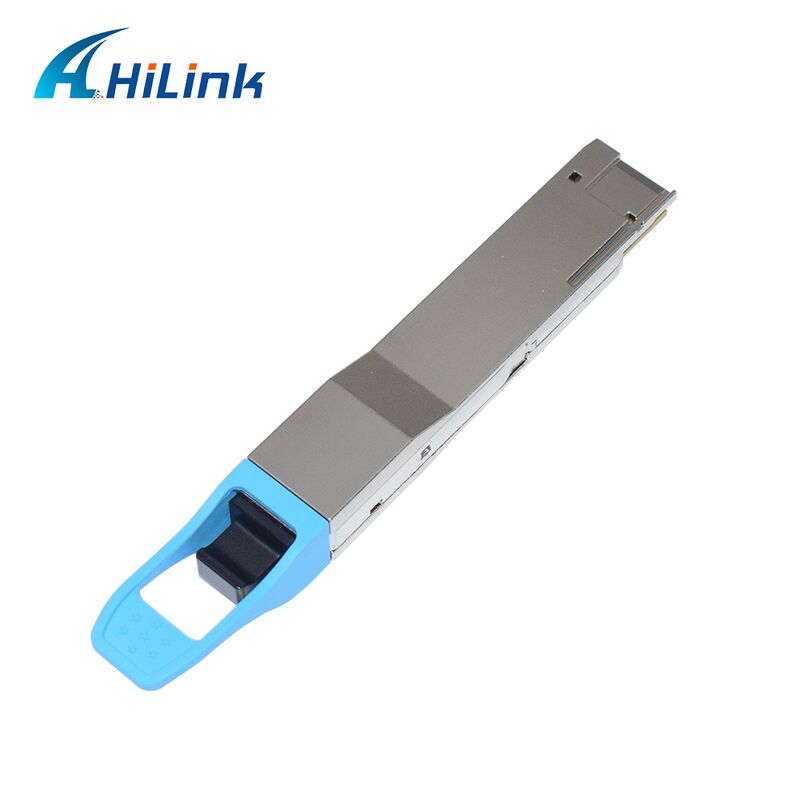

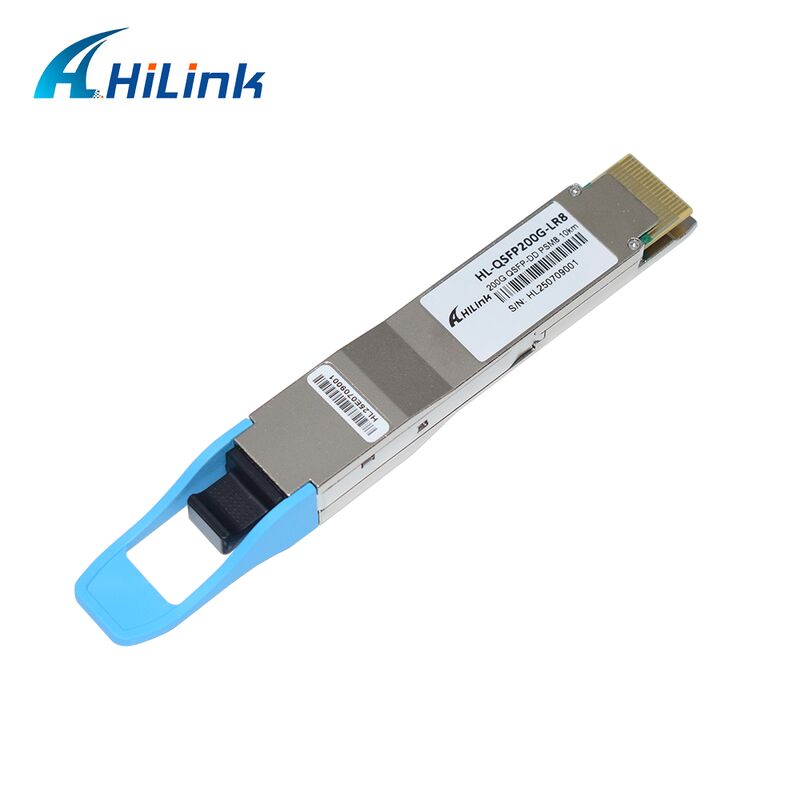

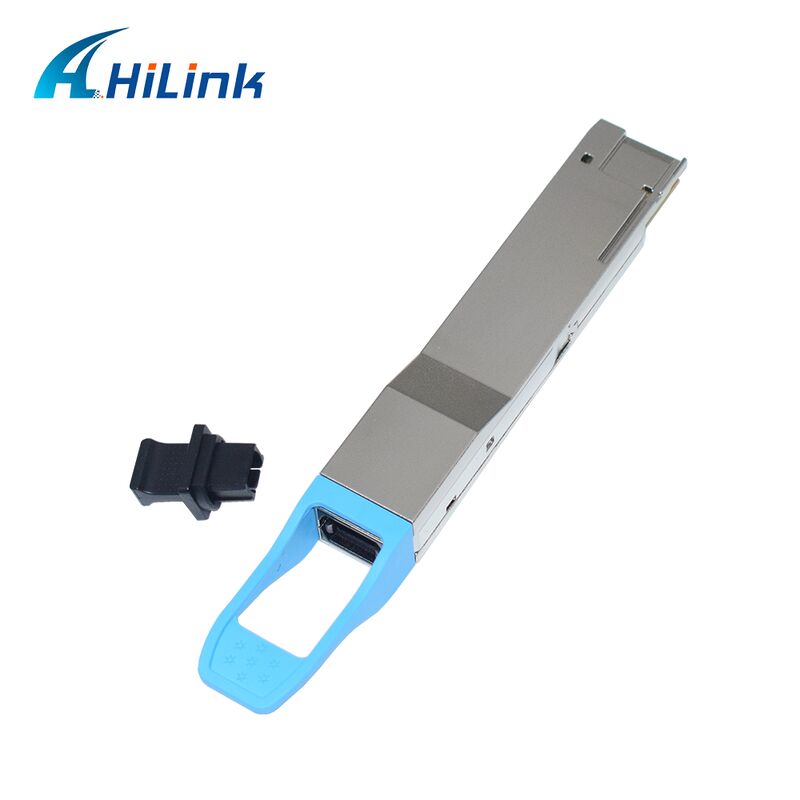

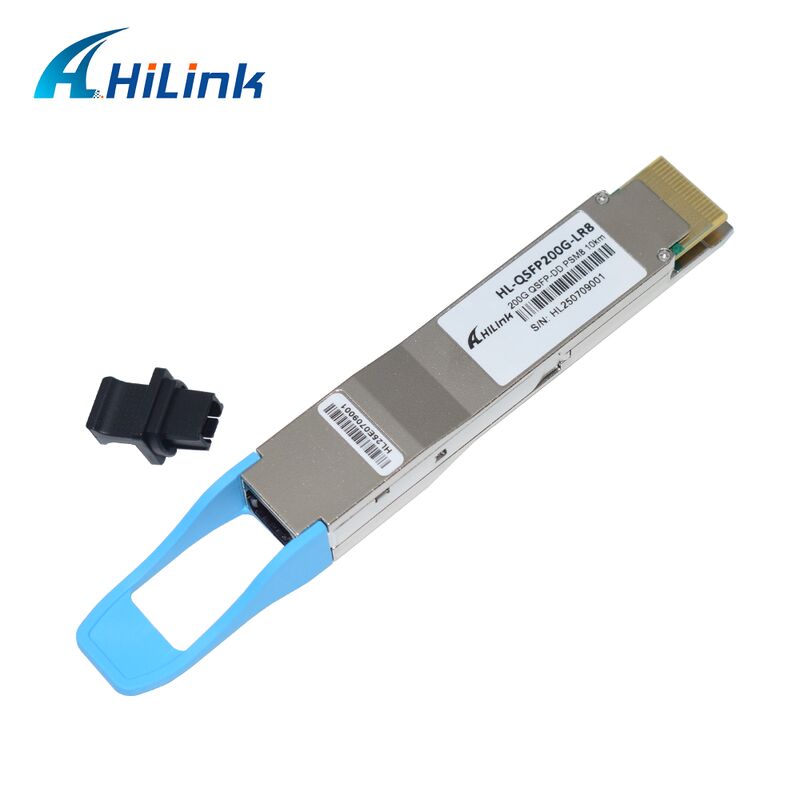

Product Images
