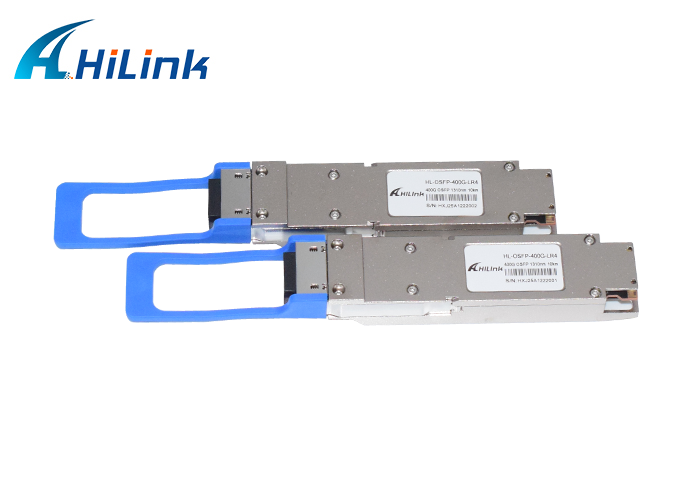

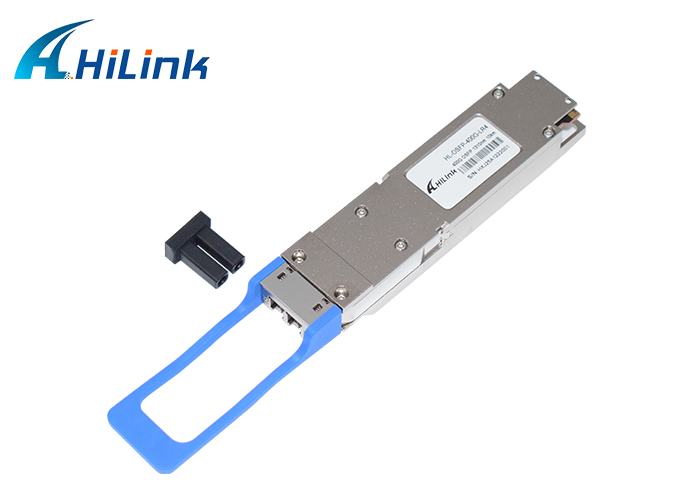

Name: OSFP Transceiver 400G Data Speed 10km Transmission 1310nm Wavelength for 400G Ethernet and Data Centers
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-OSFP-400G-LR4
Price: 130.00 USD
Availability: InStock

En casa > productos > Módulo óptico del transmisor-receptor >

OSFP Transceiver 400G Data Speed 10km Transmission 1310nm Wavelength for 400G Ethernet and Data Centers

Lugar de origen:

Porcelana

Nombre de la marca:

HiLink or OEM

Certificación:

CE FCC ROSH

Número de modelo:

HL-OSFP-400G-LR4

Contacta con nosotros

Solicitar una cita

OSFP Transceiver 400G Data Speed 10km Transmission 1310nm Wavelength for 400G Ethernet and Data Centers

Detalles del producto

Longitud de onda:

1310nm

Condiciones de pago y envío

Cantidad de orden mínima

1 unidad

Precio

Negociable

Detalles de empaquetado

Paquete normal u OEM

Tiempo de entrega

5-8 días laborables

Condiciones de pago

T/T, Unión Occidental, Paypal

Capacidad de la fuente

2000pcs por semana

Productos relacionados

25G SFP28 BIDI 10km/20km/40km/50km/60km Optic Module

Consiga el mejor precio

OSFP Transceiver 400G Data Speed 10km Transmission 1310nm Wavelength for 400G Ethernet and Data Centers

Consiga el mejor precio

el video

Módulo 25G SFP28 BIDI 50km 1270/1310nm

Consiga el mejor precio

el video

Transceptor óptico QSFP28 100G BIDI ZR4 con transmisión de 80 km y conector LC

Consiga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

OSFP 400G LR4 1310nm 10KM Optical Transceiver

Product Overview

Hilink's OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber. The module features 8 independent electrical input/output channels operating up to 53.125Gbps per channel.

The integrated GearBox converts the 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of 400Gb/s.

Technical Specifications

Supports 425Gbps data rate
Single 3.3V Power Supply
Up to 10km transmission over Single Mode Fiber with KP4 FEC
Duplex LC connector
8x53.125Gbps (PAM4) electrical interface
PIN and TIA array on the receiver side
Power dissipation < 8W
Case temperature range: 0°C to 70°C (commercial)

Applications

400G Ethernet networks
400G-LR4 applications
Data center infrastructure
InfiniBand systems

Technical Details

The four transmitter/receiver units operate on the ITU G.694.2 CWDM grid near 1300nm. The transmitter path incorporates a bi-directional PAM4 re-timer ASIC integrated with a 4-channel modulator driver, 4 externally modulated lasers, and one optical multiplexer.

On the receiver path, an optical de-multiplexer is coupled to 4 photodiodes, along with the PAM4 re-timer that includes a built-in 4-channel TIA array. The electrical interface is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs and OSFP MSA standards.
