Name: 200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP200G-LR8
Price: 130.00 USD
Availability: InStock

En casa > productos > Módulo óptico del transmisor-receptor >

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector

Lugar de origen:

Porcelana

Nombre de la marca:

HiLink or OEM

Certificación:

CE FCC ROSH

Número de modelo:

HL-QSFP200G-LR8

Contacta con nosotros

Solicitar una cita

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector

Detalles del producto

Nombre del producto:

Transceptor óptico 200G QSFP DD PSM8 10 km (MPO16)

Transmisión:

10 kilómetros

Velocidad de datos:

200g

Conector:

El MPO16

Longitudes de onda:

1310nm

OEM:

Apoyo

Condiciones de pago y envío

Cantidad de orden mínima

1 unidad

Precio

Negociable

Detalles de empaquetado

Embalaje normal u OEM

Tiempo de entrega

5-8 días laborables

Condiciones de pago

T/T, Unión Occidental, Paypal

Capacidad de la fuente

2000pcs por semana

Productos relacionados

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Consiga el mejor precio

Transceptor bidireccional XFP de 10 Gb/s, alcance de 40 km, TX1270/1330nm RX1330/1270nm, compatible con RoHS

Consiga el mejor precio

Transceptor SFP+ de velocidad de datos de 10G Hilink con distancia de 30M/80M y módulo de cobre 10GBASE-T compatible con RoHS

Consiga el mejor precio

Transceptor SFP de cobre Hilink HL-SFP-T con conector RJ-45

Consiga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

Description

The Technologies HL-QSFP200G-LR8 is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP DD PSM8 for 2×100 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates eight data lanes in each direction with 208 Gbps bandwidth. Each lane can operate at 26Gbps up to 10km over G.652 SMF. These modules are designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses an 16 fiber MTP (MPO) connector. This module incorporates Hilink Technologies proven circuit and Optical technology to provide reliable long life, high performance, and consistent service. The 200G QSFP DD PSM8 is one kind of parallel transceiver. DFB and PIN array package is key technique, through I2C system can contact with module.

Features

8 channels full-duplex transceiver modules
Supports 8×25Gb/s aggregate bit rates
Supports 8×10Gb/s aggregate bit rates if requires
8 channels 1310nm DFB
8 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Support CDR bypass
Low power consumption <6.5W
Hot Pluggable QSFP DD form factor
Up to 10km reach for G.652 SMF
Single male MPO16(APC 8-degree) connector receptacle
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

Applications

2×100G Ethernet links
Infiniband DDR/EDR
Datacenter and Enterprise networking

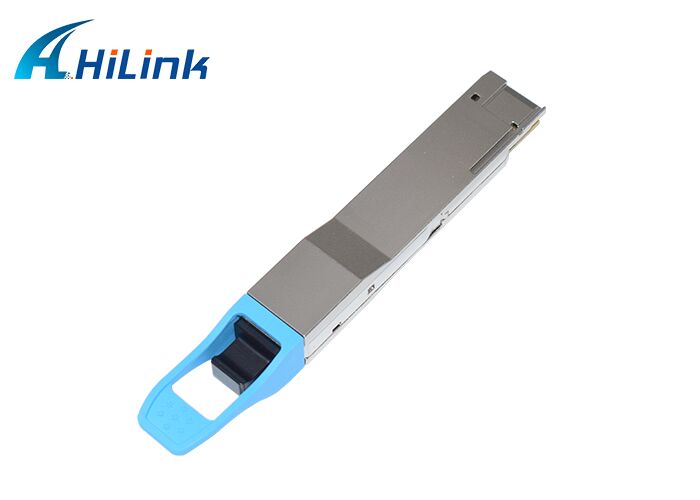

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 0

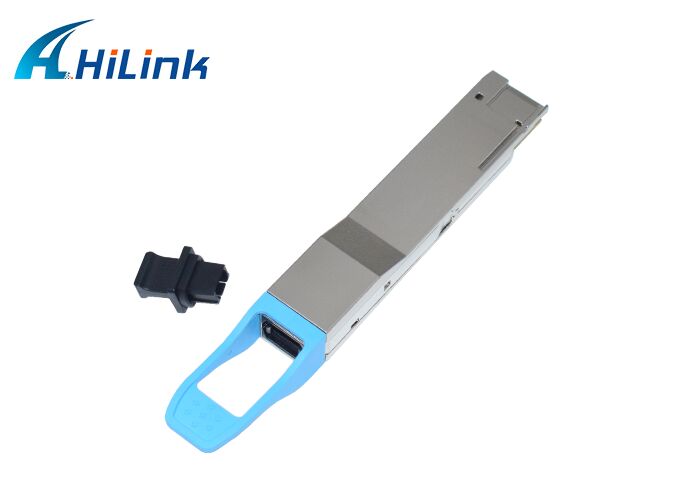

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 1

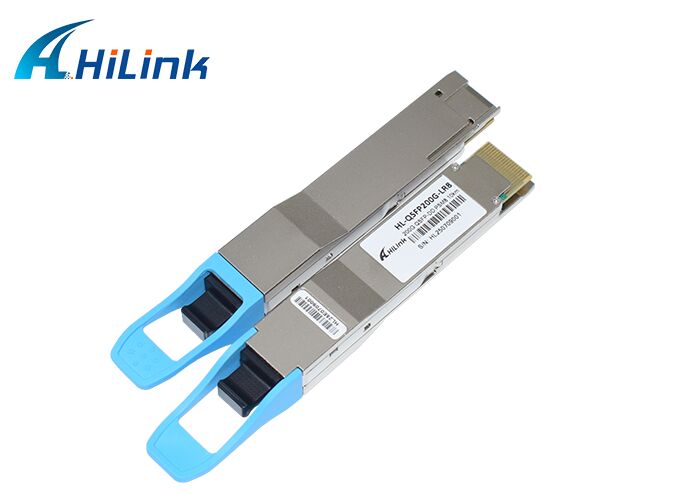

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 2
