Name: SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP-BXU-L5/HL-SFP-BXD-L5
Price: 5.00 USD
Availability: InStock

En casa > productos > Módulo óptico del transmisor-receptor >

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Lugar de origen:

Nombre de la marca:

HiLink or OEM

Certificación:

CE FCC ROSH

Número de modelo:

HL-SFP-BXU-L5/HL-SFP-BXD-L5

Contacta con nosotros

Solicitar una cita

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Detalles del producto

Nombre del producto:

Transceptor óptico SFP+ 10G BIDI 5KM

Velocidad de datos:

10g

Transmisión:

5km

Tipo de conector:

Longitud de onda:

T1270/R1330

Compatible:

Cisco, Juniper, Arista, Huawei, etc.

Condiciones de pago y envío

Cantidad de orden mínima

1 par

Precio

US$5.00~US$6.00/pair

Detalles de empaquetado

Paquete normal u OEM

Tiempo de entrega

5-8 días laborables

Condiciones de pago

T/T, PayPal, Unión Occidental

Capacidad de la fuente

2000 parejas por semana

Productos relacionados

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Consiga el mejor precio

Transceptor bidireccional XFP de 10 Gb/s, alcance de 40 km, TX1270/1330nm RX1330/1270nm, compatible con RoHS

Consiga el mejor precio

Transceptor SFP+ de velocidad de datos de 10G Hilink con distancia de 30M/80M y módulo de cobre 10GBASE-T compatible con RoHS

Consiga el mejor precio

Transceptor SFP de cobre Hilink HL-SFP-T con conector RJ-45

Consiga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

Description

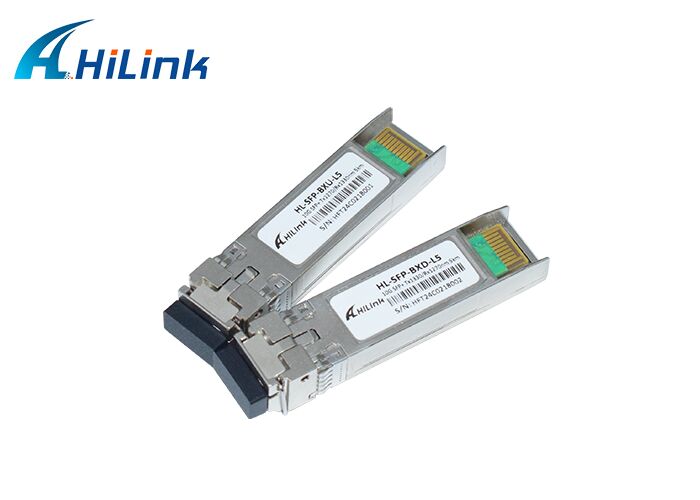

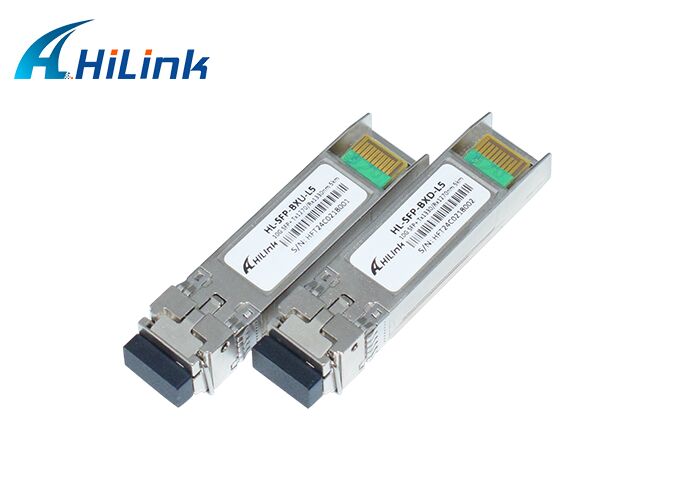

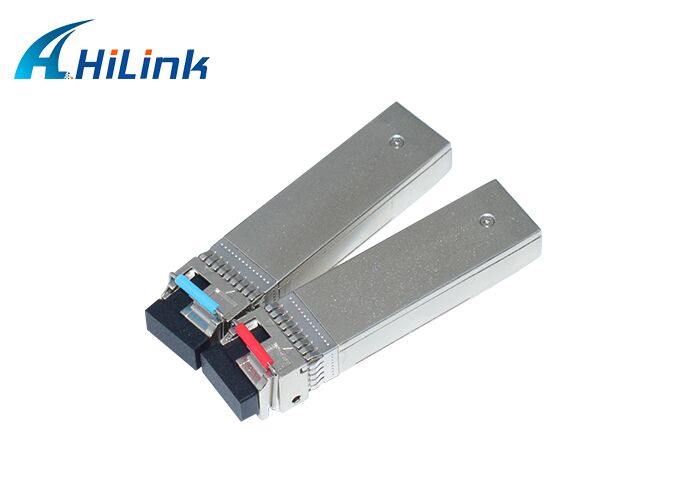

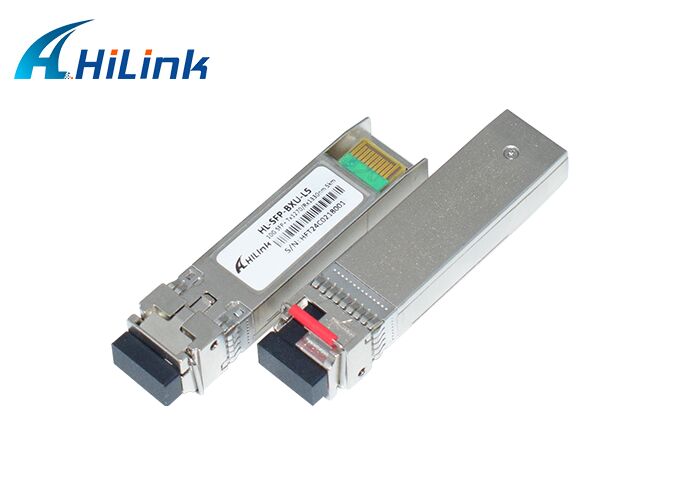

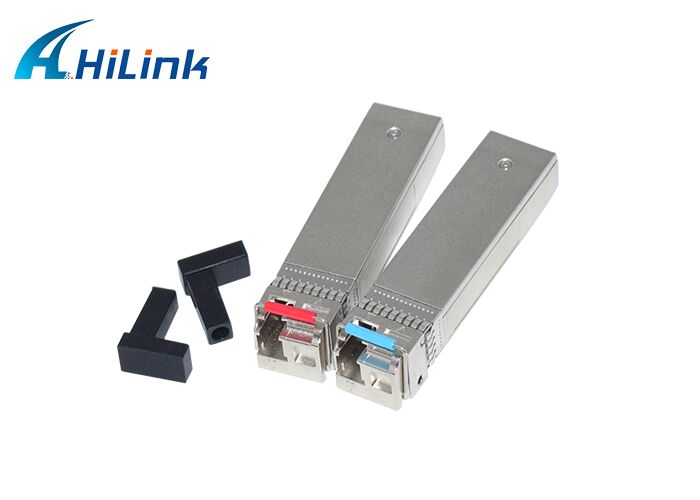

The HL-SFP-BXU-L5/HL-SFP-BXD-L5 Transceiver is intended for 5km reach service from 0.6Gb/s to 10.3125Gb/s BI-direction single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.

The low jitter and low bit error rate optical assembly features a DML laser transmitter and PIN/TIA receiver. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

Product features

l Operating data rate up to 10.3125Gbps

l Up to 5km transmission distance

l High sensitivity PIN photodiode and TIA

l 12dB Power Budget at Least

l LC single connector

l Hot pluggable 20pin connector

l Low power consumption <1.2 W

l Single +3.3V±5% power supply

l Compliant with SFF-8472&SFF-8431

l Fully RoHS Compliant

l Compliant with IEEE802.3ae 10GBASE-LR/LW

l Operating temperature range:

Commercial: 0°C to +70°C

Industrial: -40°C to +85°C

Application

l 10GBASE-LR at 10.31Gbps

l 10GBASE-LW at 9.95Gbps

l Other Optical Links

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission 0

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission 1

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission 2
