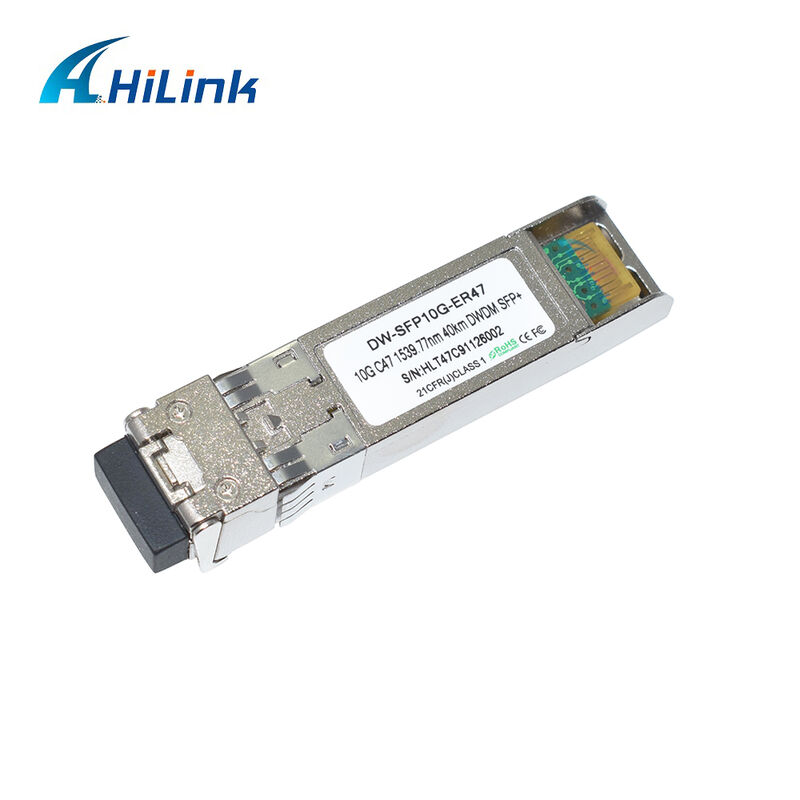

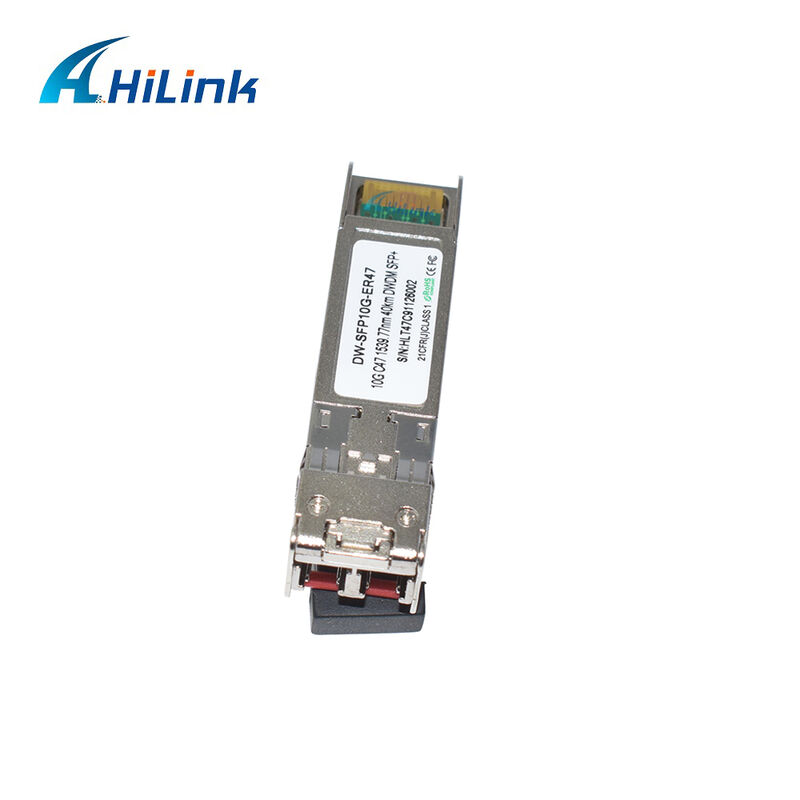

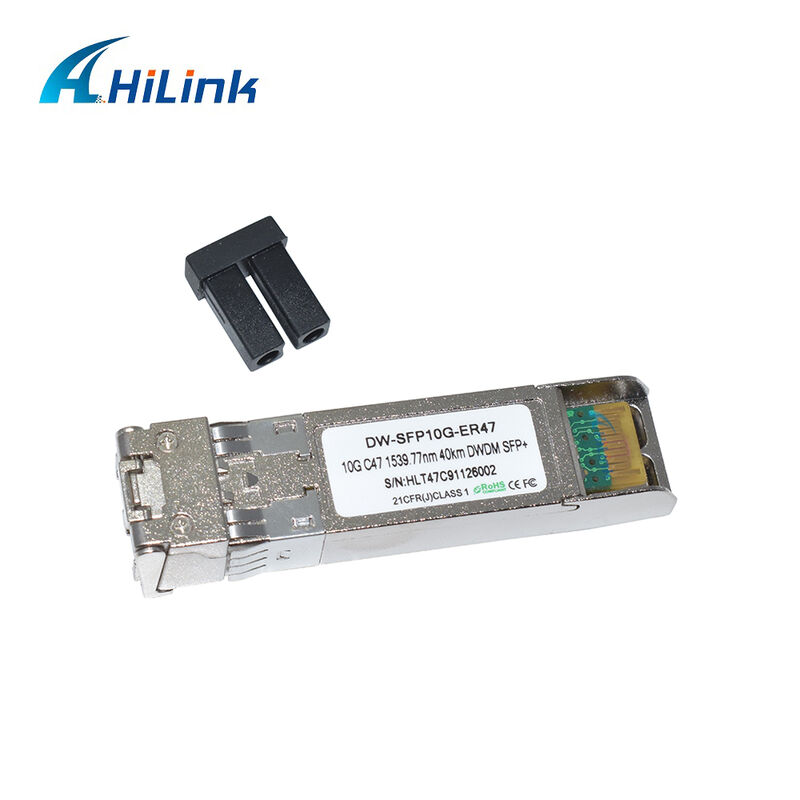

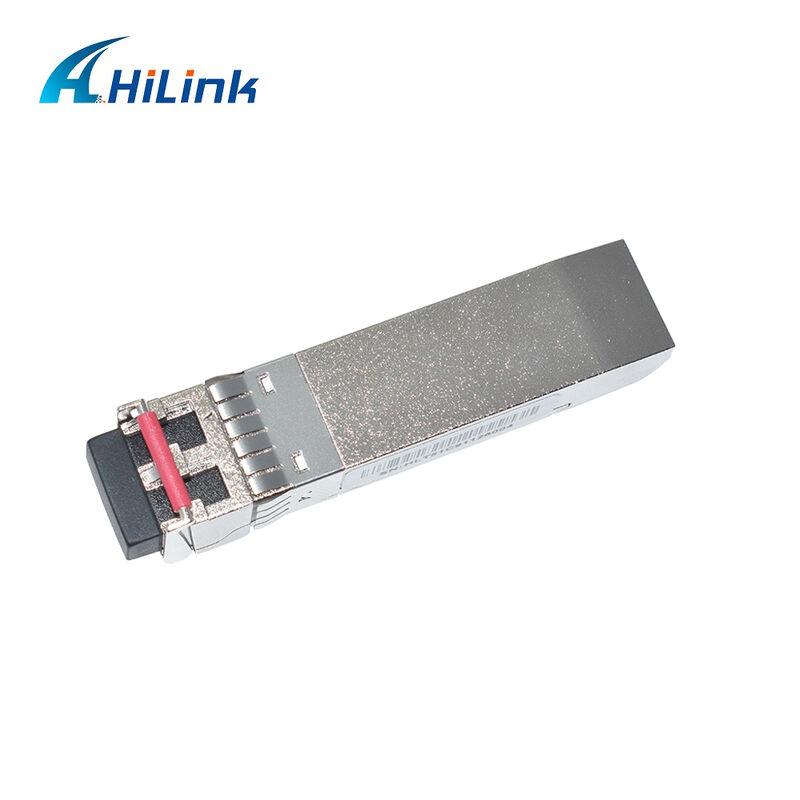

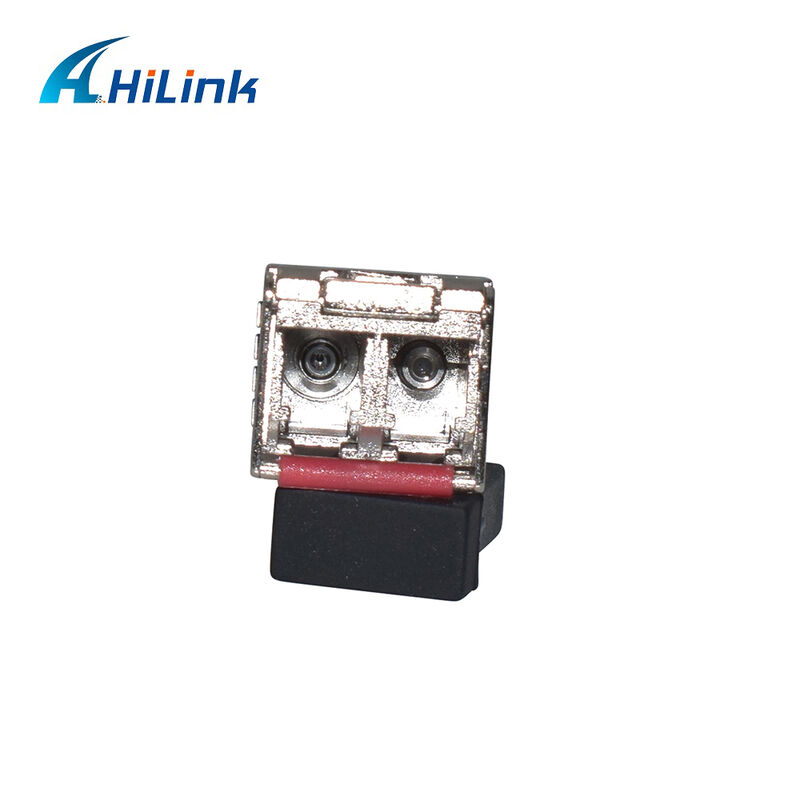

Name: 10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-DWSFP10G-ER
Price: 130.00 USD
Availability: InStock

En casa > productos > Módulo óptico del transmisor-receptor >

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

40km Distance Optical Transceiver Module

100GHz Channel Spacing SFP+ Transceiver

CH17~61 Wavelength 10G DWDM SFP+

Lugar de origen:

Cantón, China

Nombre de la marca:

Hilink

Certificación:

CE RoHs

Número de modelo:

HL-DWSFP10G-ER

Contacta con nosotros

Solicitar una cita

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

Detalles del producto

Nombre del producto:

10G DWDM SFP+ 40KM

Velocidad de datos:

10g

Longitud de onda:

CH17~61

Distancia:

40km

Garantía:

3 años

Certificación:

RoHS

El tiempo de entrega:

3-7 días laborables

OEM:

apoyo

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Precio

Negociable

Detalles de empaquetado

Paquete normal u OEM

Tiempo de entrega

5-8 días laborables

Condiciones de pago

LC, T/T, Unión Occidental

Productos relacionados

10G SFP+ DWDM Transceiver 80km 100km CH17~61 120km CH20~55 100GHz Industrial Commercial Temperature

Consiga el mejor precio

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

Consiga el mejor precio

Cables de arnés MTP/MPO personalizados de Hilink

Consiga el mejor precio

Cables de parcheo MTP/MPO personalizados de Hilink

Consiga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

10G SFP+ DWDM Optical Transceiver Module

HILINK's 10G DWDM SFP+ 40KM Enhanced Small Form Factor Pluggable transceivers are designed for use in 10-Gigabit Ethernet links up to 40km over Single Mode fiber. These high-performance, cost-effective solutions are optimized for telecommunications applications and comply with SFF-8431, SFF-8432 and ITU-T G.698.1 standards.

Product Overview

This transceiver features a cooled EML laser in the transmitter section and a PIN photodiode integrated with TIA in the receiver section. All modules satisfy Class I laser safety requirements and include digital diagnostics functions via a 2-wire serial interface as specified in SFF-8472, providing real-time access to operating parameters.

Key Features

Supports 9.95 to 11.3 Gb/s bit rates
Duplex LC connector
Hot pluggable SFP+ footprint
Cooled EML transmitter and PIN-TIA receiver
40km Single Mode Fiber connection capability
Low power consumption < 1.2W
100 GHz channel spacing
Digital Diagnostic Monitor Interface
Optical interface compliant to ITU-T 694.1 & G.698.1
Electrical interface compliant to SFF-8431 & SFF-8432
Operating case temperature options:
- Commercial: 0°C to 70°C
- Industrial: -5°C to 80°C

Applications

10G Ethernet
2x, 4x, 8x Fiber Channel
ITU-T G.698.1 compliant systems
Other optical link applications

Channel Selection Specifications

Channel	Frequency (THz)	Center Wavelength (nm)
17	191.7	1563.86
18	191.8	1563.05
19	191.9	1562.23
20	192.0	1561.42
21	192.1	1560.61
22	192.2	1559.79
23	192.3	1558.98
24	192.4	1558.17
25	192.5	1557.36
26	192.6	1556.55
27	192.7	1555.75
28	192.8	1554.94
29	192.9	1554.13
30	193.0	1553.33
31	193.1	1552.52
32	193.2	1551.72
33	193.3	1550.92
34	193.4	1550.12
35	193.5	1549.32
36	193.6	1548.51
37	193.7	1547.72
38	193.8	1546.92
39	193.9	1546.12
40	194.0	1545.32
41	194.1	1544.53
42	194.2	1543.73
43	194.3	1542.94
44	194.4	1542.14
45	194.5	1541.35
46	194.6	1540.56
47	194.7	1539.77
48	194.8	1538.98
49	194.9	1538.19
50	195.0	1537.40
51	195.1	1536.61
52	195.2	1535.82
53	195.3	1535.04
54	195.4	1534.25
55	195.5	1533.47
56	195.6	1532.68
57	195.7	1531.90
58	195.8	1531.12
59	195.9	1530.33
60	196.0	1529.55
61	196.1	1528.77

Available in channels 17 through 61 with 100 GHz spacing for flexible network deployment.
