25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM

25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM

25Gb/s SFP28 BIDI Transceiver

80km SFP28 BIDI Transceiver

RoHS 6 Compliance SFP28 Module

Place of Origin:

Guangdong, China

Nombre de la marca:

HILINK

Certificación:

CE FCC Rohs

Model Number:

HL-SFP28-25G-B/D80

Contacta con nosotros
Solicitar una cita
25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM 25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM 25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM
Detalles del producto
Products name:
25Gb/s 80Km SFP28 BIDI Transceivers
Connetor:
Simplex LC
Data rate:
25G
Distance:
80KM
Wavelength:
1304/1309
Temperature Range:
0℃ ~ +70℃
Certificación:
CE RoHS FCC
Type:
Fiber Optic Transceivers, 25GSFP
Condiciones de pago y envío
Minimum Order Quantity
1pcs
Precio
Negociable
Packaging Details
Static bag, Plastic Flat, Retail box, by requires
Delivery Time
5-8workingdays
Payment Terms
Western Union,T/T,L/C
Supply Ability
100pcs/month
Productos relacionados
Un buen precio. 25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication en línea

25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication

Consiga el mejor precio
Un buen precio. GPON OLT Transceiver SFP Module with 8dBm 9dBm Output and 2.5G Data Rate en línea

GPON OLT Transceiver SFP Module with 8dBm 9dBm Output and 2.5G Data Rate

Consiga el mejor precio
Un buen precio. EPON OLT SFP Transceiver with PX20+ PX20++ PX20+++ for 1.25Gbps Data Rate and 20KM Transmission en línea

EPON OLT SFP Transceiver with PX20+ PX20++ PX20+++ for 1.25Gbps Data Rate and 20KM Transmission

Consiga el mejor precio
Un buen precio. 1.25G EPON ONU SFP Transceiver with SC/UPC Receptacle for 20KM Distance and 0℃ ~ +70℃ Temperature Range en línea

1.25G EPON ONU SFP Transceiver with SC/UPC Receptacle for 20KM Distance and 0℃ ~ +70℃ Temperature Range

Consiga el mejor precio
Contacta con nosotros
86-755-8317-6243
Contacta ahora
Descripción del producto

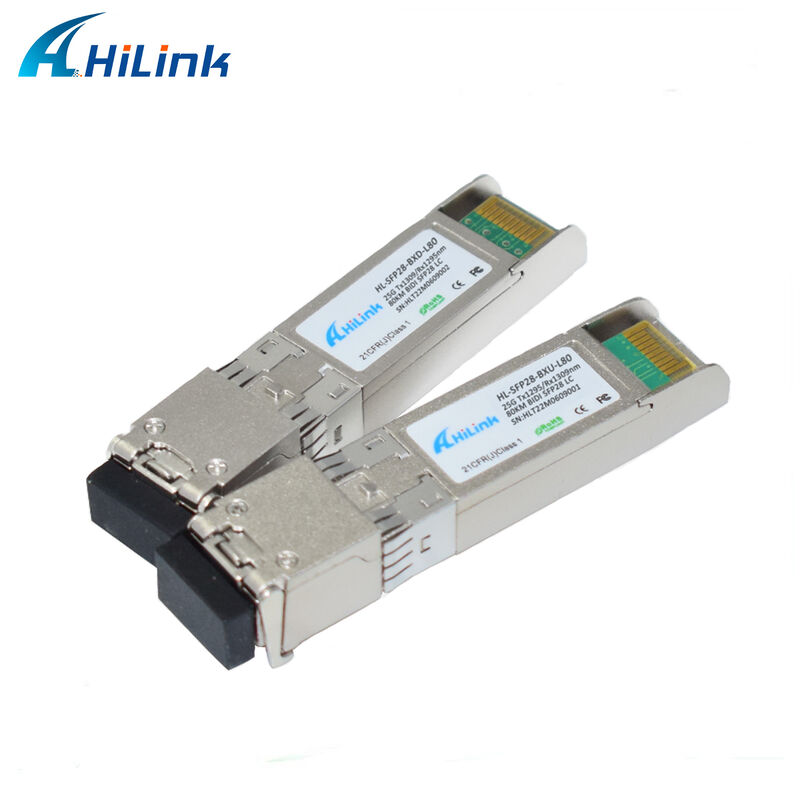

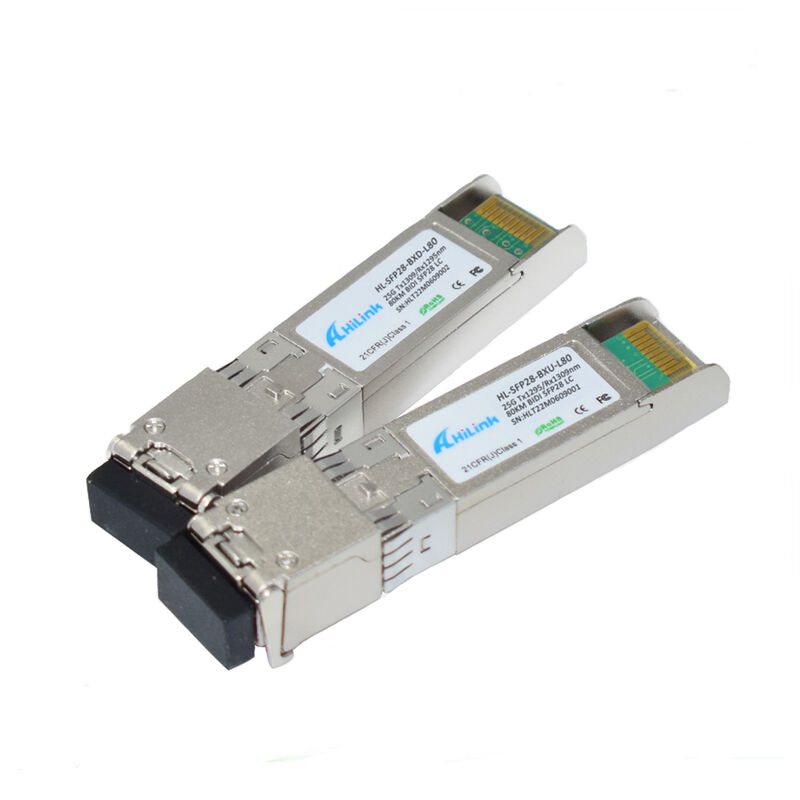

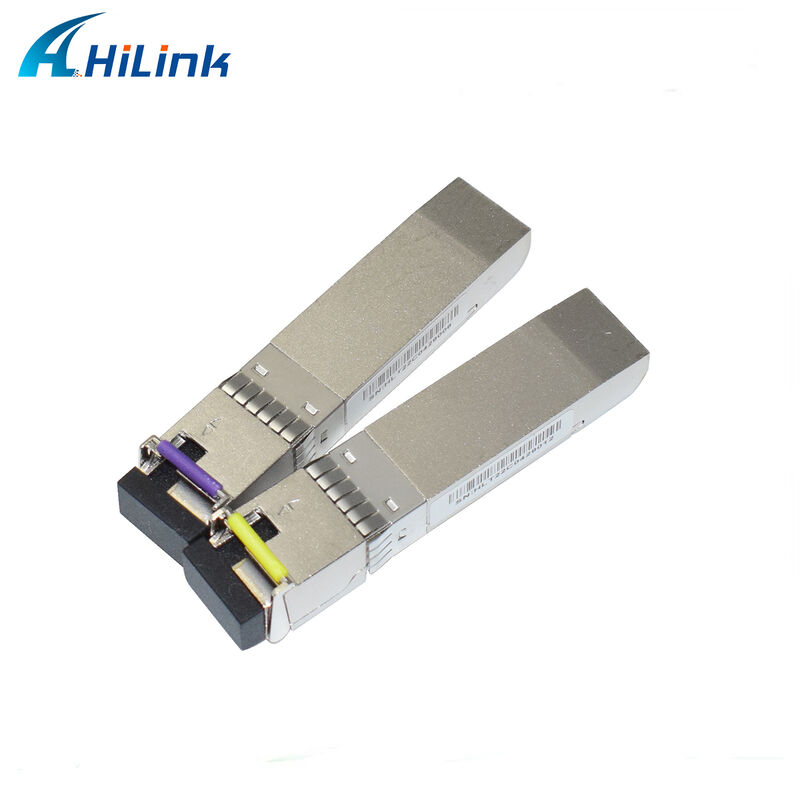

25Gb/s SFP28 BIDI 80km Optical Transceiver
Hot-Pluggable Single LC DDM RoHS 6 Compliance
The HL-SFP28-25G-U/D80 series single mode transceiver is a small form factor pluggable module for duplex optical data communications, designed for single mode fiber operation.
Key Features
  • Supports data rates up to 25.78125Gb/s
  • Hot-pluggable SFP footprint with single LC connector
  • Up to 80km reach for G.652 SMF
  • EML TX and integrated SOA & PIN TIA RX
  • Temperature range:
    • Commercial: 0°C to 70°C
    • Industrial: -40°C to 85°C
  • Power consumption:
    • Commercial: 2.2W
    • Industrial: 2.8W
  • RoHS 6 compliance
  • Compliant with IEEE 802.3cc, SFF-8472 and SFF-8419
  • Meets EU Directive 2015/863/EU
Technical Specifications
Operates at nominal wavelengths of 1295.56nm or 1309.14nm. The transmitter section uses a multiple quantum well EML, which is Class 1 laser compliant according to International Safety Standard IEC-60825.
The electrical interface is compliant to SFI electrical specifications with 100 Ohms differential impedance. Data lines are internally AC coupled for quality signal termination and low EMI.
25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM 0 25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM 1
Applications
  • 25G Ethernet
  • CPRI option 10
Our Services
OEM and ODM
Custom OEM/ODM orders available upon request.
Quality Guarantee
All optical transceivers are brand new with new components, never using old or refurbished materials. Each unit undergoes functional and aging tests. We provide a 3-year warranty from shipment date.
Product Range
We supply compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and special transceiver modules compatible with most major brands.
25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM 2 25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM 3
Packaging & Shipping
International express shipping available via DHL, FedEx, EMS, TNT, UPS (3-7 day delivery).
25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM 4
