40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

4 CWDM lanes MUX/DEMUX design QSFP+ Transceiver

10km 40G QSFP+ LR4

Compliant with 40G Ethernet IEEE802.3ba Fiber Optic Transceiver

Lugar de origen:

Guangdong, China

Nombre de la marca:

HILINK

Certificación:

CE FCC Rohs

Número de modelo:

Se aplicará el método de comprobación de la calidad de los productos.

Contacta con nosotros
Solicitar una cita
Detalles del producto
Nombre de los productos:
40G QSFP+ 10Km
Connetor:
Dúplex lc
Tasa de datos:
40 g
Distancia:
10 km
Rango de temperatura:
0 °C ~ + 70 °C
Certificación:
RoHS Compliant
Tipo:
Transceptores de fibra óptica, 40G QSFP+
Funciones de diagnóstico digital:
Incorporado
Condiciones de pago y envío
Cantidad de orden mínima
1 por ciento
Precio
EXW: 1084~1176USD/PCS
Detalles de empaquetado
El bolso estático, plano plástico, caja al por menor, por requiere
Tiempo de entrega
5-8workingdays
Condiciones de pago
Unión occidental, T/T, L/C
Capacidad de la fuente
100pcs/mes
Descripción del producto
40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant
Product Description

The HL-QSFP-40G-LR4 is a high-performance transceiver module designed for 10km optical communication applications. Compliant with 40GBASE-LR4 of the IEEE P802.3ba standard, this module converts 4 input channels of 10Gb/s electrical data to 4 CWDM optical signals, multiplexing them into a single channel for 40Gb/s optical transmission. On the receiver side, it optically de-multiplexes a 40Gb/s input into 4 CWDM channel signals and converts them to 4 channel output electrical data.

Key Features
  • 4 CWDM lanes MUX/DEMUX design
  • Up to 11.2Gbps per channel bandwidth
  • Aggregate bandwidth of > 40Gbps
  • Duplex LC connector
  • Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard
  • QSFP MSA compliant
  • Up to 10km transmission
  • Compliant with QDR/DDR Infiniband data rates
  • Single +3.3V power supply operating
  • Built-in digital diagnostic functions
  • Operating temperature range: 0°C to 70°C
  • RoHS Compliant
Applications
  • Rack to rack connections
  • Data center switches and routers
  • Metro networks
  • 40G BASE-LR4 Ethernet links

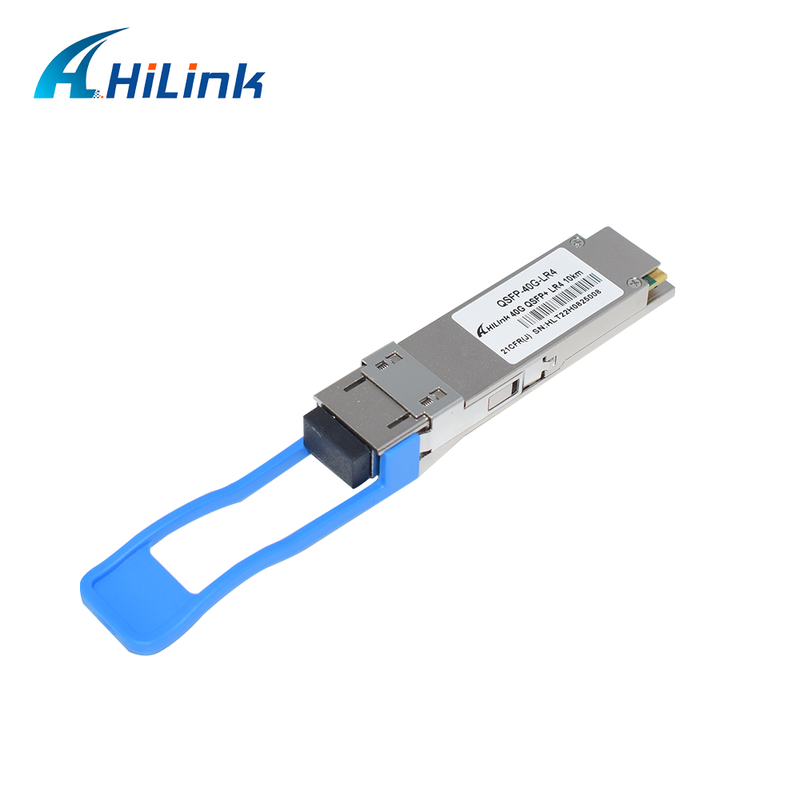

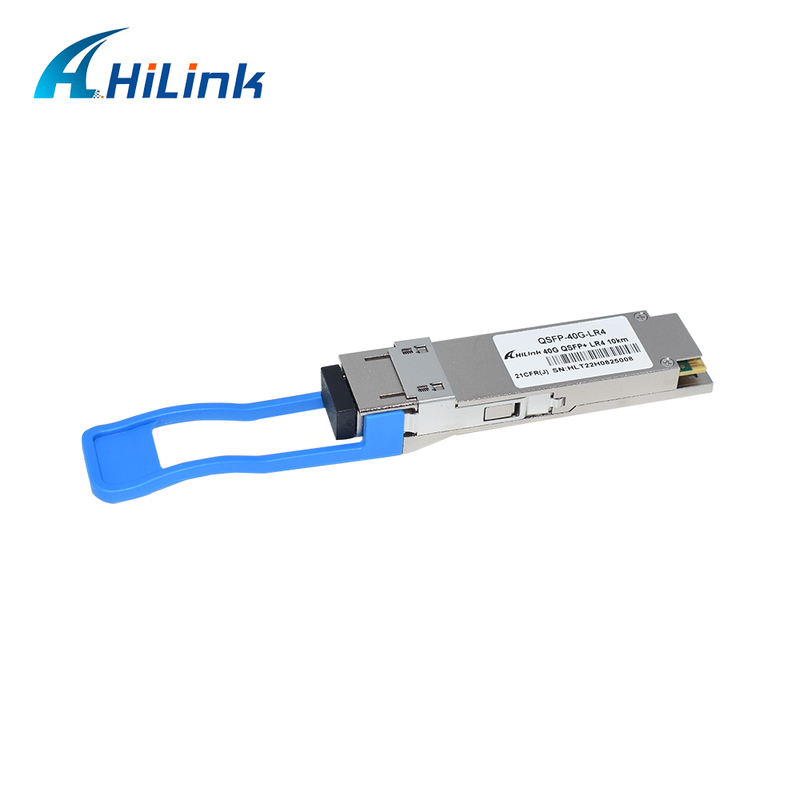

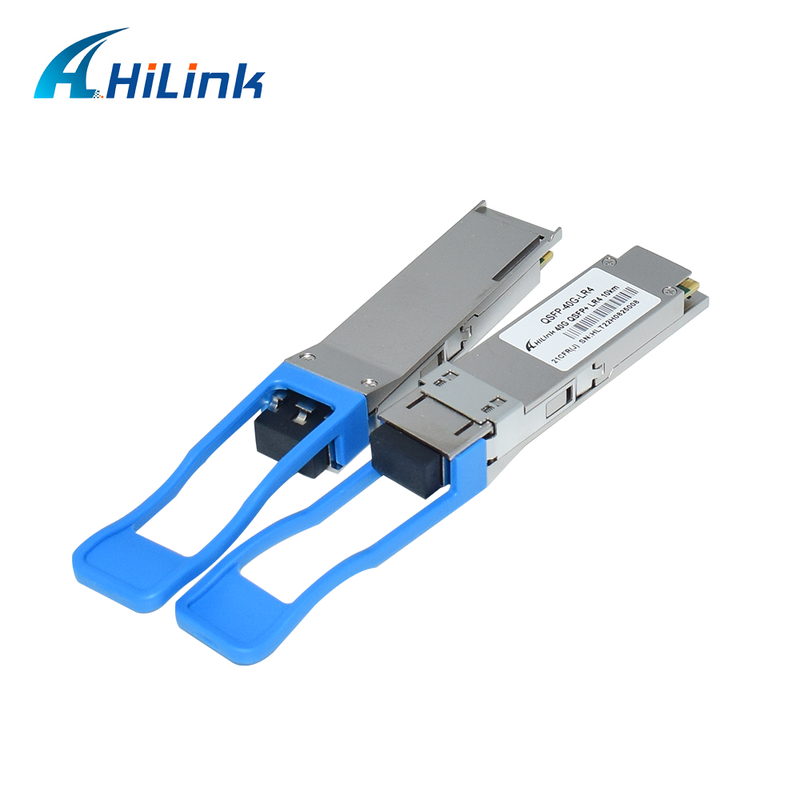

Product Images
40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 0 40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 1 40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 2
Our Services

OEM and ODM: Custom OEM/ODM orders are available for this product.

Quality Guarantee

All advertised optical transceivers are brand new with new components and never use old or refurbished materials. Each unit undergoes functional testing and aging tests. We provide a 3-year warranty from the date of shipment.

Product Range

We supply a comprehensive range of compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules compatible with most major brands.

Packaging & Shipping

We ship internationally via DHL, FedEx, EMS, TNT, UPS and other carriers, with delivery typically taking 3-7 days.

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 3
