Name: 25G SFP28 BIDI 50km 1270/1310nm Module
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: 25G-BXU/D-50
Price: 130.00 USD
Availability: InStock

En casa > productos > Módulo óptico del transmisor-receptor >

25G SFP28 BIDI 50km 1270/1310nm Module

25G SFP28 BIDI optical transceiver

50km SFP28 fiber module

1270/1310nm BIDI transceiver module

Lugar de origen:

Guangdong, China

Nombre de la marca:

Hilink

Certificación:

CE Rohs

Número de modelo:

25G-BXU/D-50

Contacta con nosotros

Solicitar una cita

Detalles del producto

Nombre del producto:

25G-BXU/D-50

tasa de datos:

25 g

Alcanzar:

50 kilómetros

Temperatura de funcionamiento:

0 a 70 ℃

Condiciones de pago y envío

Cantidad de orden mínima

1 piezas

Precio

Send Inquiry know latest price

Detalles de empaquetado

Caja de plástico+cartón

Tiempo de entrega

5-8 jornada laboral

Condiciones de pago

T/T, Western Union, Alipay, PayPal/WeChat/Trade Assurance

Capacidad de la fuente

2000 piezas/semana

Productos relacionados

Transceptor DDM de 25Gb/s SFP28 BIDI de 60 km

Consiga el mejor precio

100G QSFP28 SWDM4 Transceptor óptico 150m OM5 MMF LC RoHS

Consiga el mejor precio

155Mb/s BiDi Single SC, SMF, 1550nm Tx, 1310nm Rx, DFB-LD, Transceptor SFP de 40km

Consiga el mejor precio

el video

Transceptor OSFP112 DR8+ 800G Interfaz Dual MPO-12 APC 1310nm 2km OSFP

Consiga el mejor precio

Contacta con nosotros

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Contacta ahora

Descripción del producto

25G SFP28 BIDI 50km 1270/1310nm Module

Product Specifications

Attribute	Value
Product Name	25G-BXU/D-50
Data Rate	25G
Reach	50KM
Operating Temperature	0 to 70℃

Key Features

Supports data rates up to 25.78125Gb/s
Hot-pluggable SFP footprint with single LC connector
Up to 50km reach for G.652 SMF
EML transmitter and integrated APD receiver
Temperature range: Commercial (0°C to 70°C)
Power consumption: Commercial (1.5W)
RoHS 6 compliant
Compliant with IEEE 802.3cc, SFP-8472, SFP-8432 and SFP-8431
Meets EU Directive 2015/863/EU requirements

Applications

25G Ethernet networks

Product Description

This 25G series single mode transceivers are high performance, cost effective modules supporting data rate of 25.78Gbps and 50km transmission distance with SMF. This module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1310nm; the transmitter section uses a multiple quantum well EML, which is class 1 laser compliant according to International Safety Standard IEC-60825.

The SFP28 50km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.

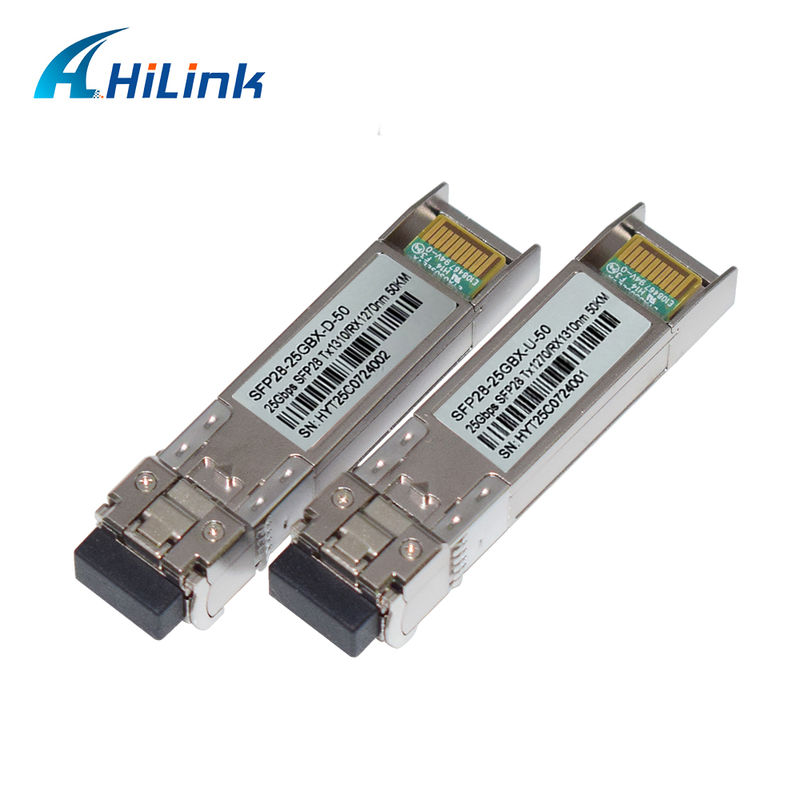

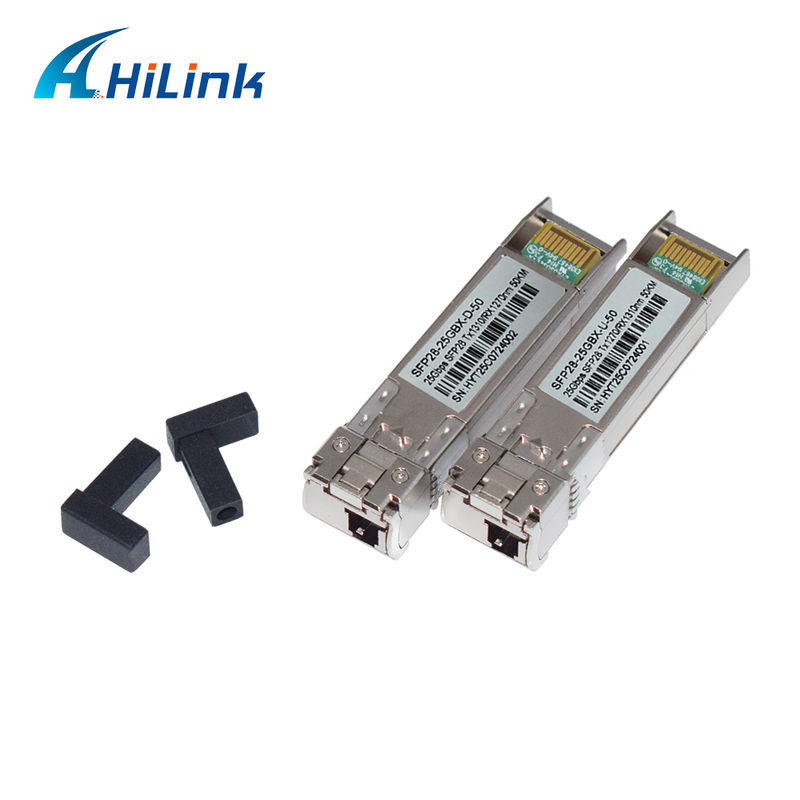

Product Images

Our Service

OEM/ODM orders available - All optical modules are brand new with no refurbished components. Each unit undergoes rigorous functional and aging tests.

3-year warranty - Coverage begins from shipment date for all optical transceivers.
