Name: 25Gbps BIDI 40KM 1270/1310nm 40KM APD LC DOM Transceiver 25G Ethernet Fiber Optic Transceivers
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP28-BIDI-40 km
Price: 893.00 USD
Availability: InStock

En casa > productos > Módulo del transmisor-receptor de SFP+ >

25Gbps BIDI 40KM 1270/1310nm 40KM APD LC DOM Transceiver 25G Ethernet Fiber Optic Transceivers

25Gbps BIDI SFP+ transceiver

40KM APD fiber optic transceiver

1270/1310nm LC DOM transceiver module

Lugar de origen:

Guangdong, China

Nombre de la marca:

HILINK

Certificación:

CE FCC Rohs

Número de modelo:

HL-SFP28-BIDI-40 km

Contacta con nosotros

Solicitar una cita

Detalles del producto

Tasa de transferencia de datos:

25 g

Distancia máxima:

los 600km

Longitud de onda 1:

1270nm/1310nm

Conector:

LC Siimple

Garantía:

3 años

CE FCC ROHS:

Apoyo

Condiciones de pago y envío

Cantidad de orden mínima

1 por ciento

Precio

Negociable

Detalles de empaquetado

Caja del cartón, caja al por menor, o por requerido

Tiempo de entrega

1-4 días

Condiciones de pago

L/C, T/T, Western Union, PayPal

Capacidad de la fuente

3000 pares por semana

Productos relacionados

el video

25Gb/s SFP28 BIDI 60km 1295/1309nm LC DDM Transceiver

Consiga el mejor precio

el video

Módulo transceptor 10G-ZR4-80KM 10G BIDI 80KM 1490nm/1550nm SFP+ STM-64 WDM 8SFP+ SMF

Consiga el mejor precio

HL-SFP-BX-10KM 10G Módulo transceptor SFP+ BIDI 20km 1270nm 1330nm Conector LC RoHS

Consiga el mejor precio

BIDI 10G WDM SMF Transceptor óptico SFP+ 100KM Tx1490nm/Rx1550nm con transceptores de fibra óptica LC para redes FTTH

Consiga el mejor precio

Contacta con nosotros

+86 17677464632

sales02@hilinktech.com

86-755-8317-6243

Contacta ahora

Descripción del producto

25Gbps BIDI 40KM 1270/1310nm 40KM APD LC DOM Transceiver 25G Ethernet Fiber Optic Transceivers

Product Specifications

Attribute	Value
Data transfer rate	25G
Max Distance	600km
Wavelength 1	1270nm/1310nm
Connector	LC Simplex
Warranty	3 Years
CE FCC Rohs	Support

Product Description

The HL25G40x-xxTransceiver is intended for 40km reach service from 24.33Gb/s to 25.78Gb/s BI-direction single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.

The low jitter and low bit error rate optical assembly features a DML laser transmitter and APD/TIA receiver. It utilizes internal clock and data recovery (CDR) units on transmitter and the receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

Features

Operating data rate up to 25.78Gbps
Up to 40km transmission distance
High sensitivity APD photodiode and TIA
Rate Adaptation
LC single connector
Hot pluggable 20pin connector
Low power consumption <1.5 W
Single +3.3V±5% power supply
Compliant with SFF-8472
Fully RoHS Compliant
Operating temperature range:
- Commercial: 0°C to +70°C
- Industrial: -40°C to +85°C

Application

25GE BASE-LR Ethernet
CPRI Option 10/eCPRI

25G SFP Transceivers

Model	Description
SFP28-25G-SR	SFP28 25Gbps 850nm 100M LC DOM
SFP28-25G-LR	SFP28 25Gbps 1310nm 10KM LC DOM
SFP28-25G-ER	SFP28 25Gbps 1310nm 40KM LC DOM
SFP28-25G-BIDI-10KM	SFP28 25Gbps BIDI1270/1310nm 10KM LC DOM
SFP28-25G-BIDI-40KM	SFP28 25Gbps BIDI1270/1310nm 40KM LC DOM
SFP28-25G-BIDI-50KM	SFP28 25Gbps BIDI1270/1310nm 50KM LC DOM

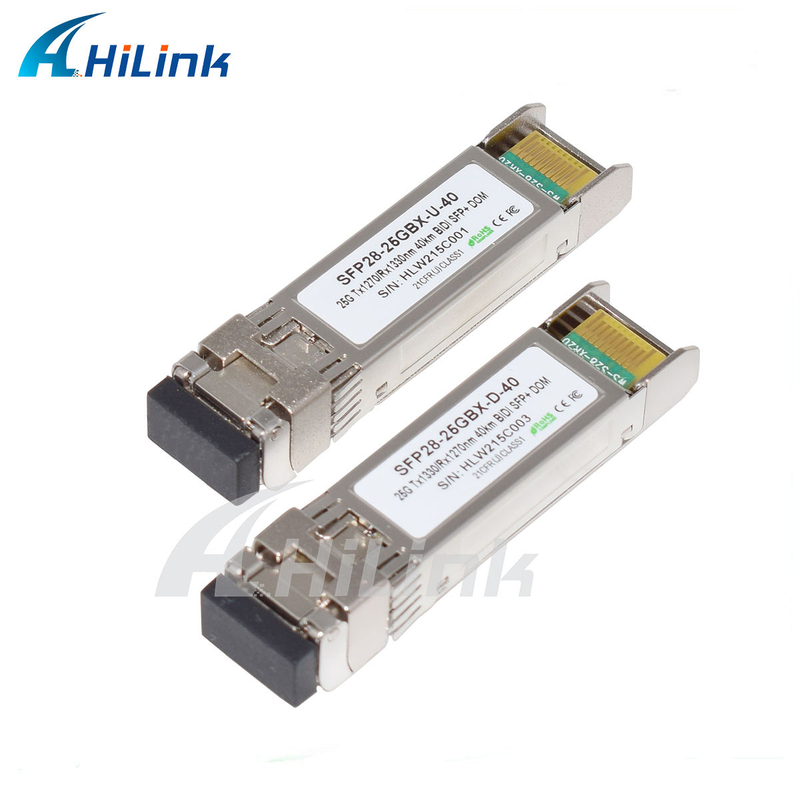

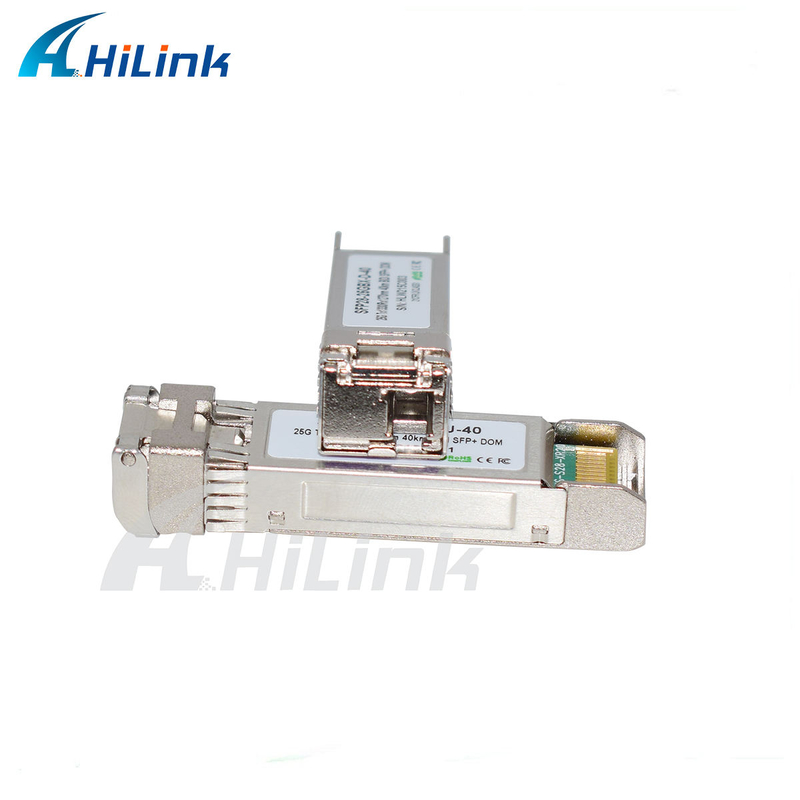

Product Images
