Descripción del producto

800G OSFP112 DR8 Transceiver

Dual MPO-12 APC interface, 1310nm, up to 500m

Product Specifications

Attribute	Value
Product Name	800G-OSFP112-DR8
Data Rate	800G
Reach	up to 500m
Operating Temperature	0 to 70℃

Product Description

This 800Gb/s Octal Small Form-factor Pluggable (OSFP) optical module features a top closed fin design for 500m optical communication applications. The module converts 8 channels of 100Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 800Gb/s.

An optical fiber cable with dual MPO-12 connector can be plugged into the OSFP112 DR8 module receptacle, with proper alignment ensured by guide pins inside the receptacle. Electrical connection is achieved through an OSFP MSA-compliant edge type connector.

The module supports I2C interface for status monitoring and control.

Key Features

OSFP form factor hot pluggable
CMIS compliance
8 channels of 100G-PAM4 electrical and optical parallel lanes
Single optical port of dual MPO-12/APC
Top open fin design
500m maximum reach via single mode fiber
16 Watts max power consumption
Operating temperature range: 0°C to 70°C

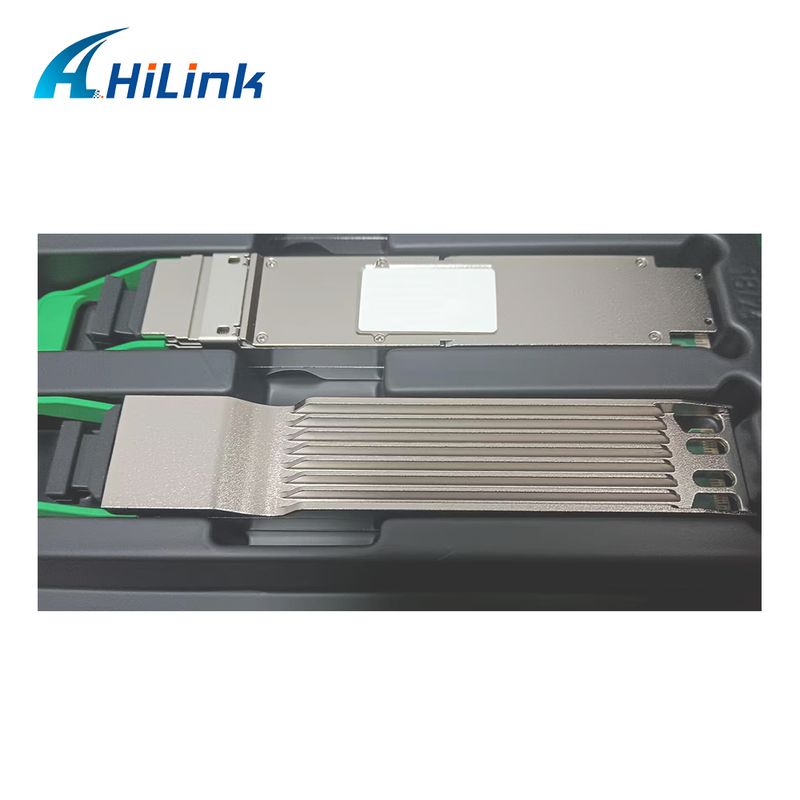

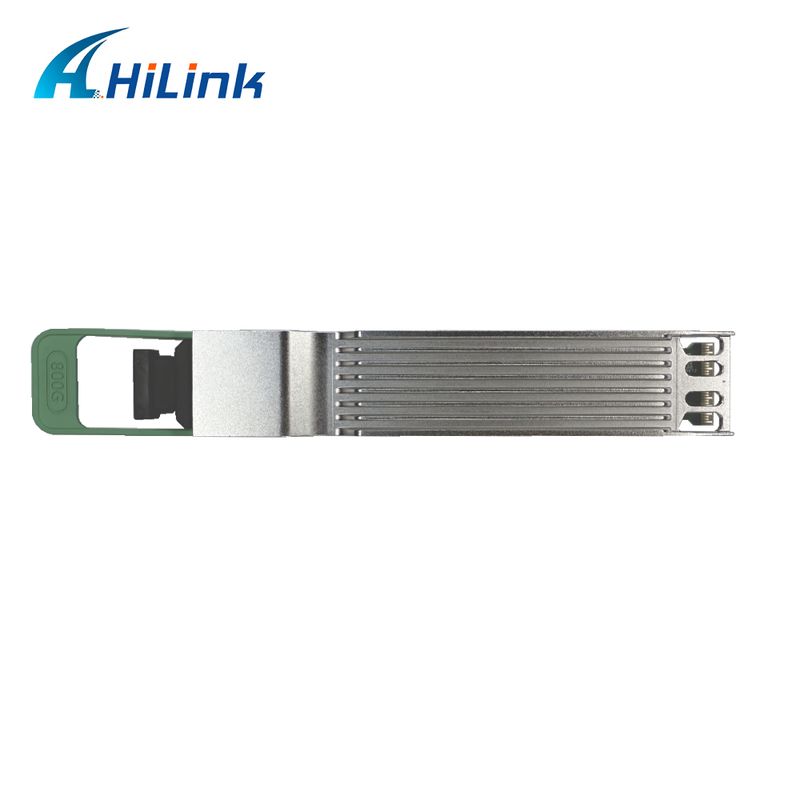

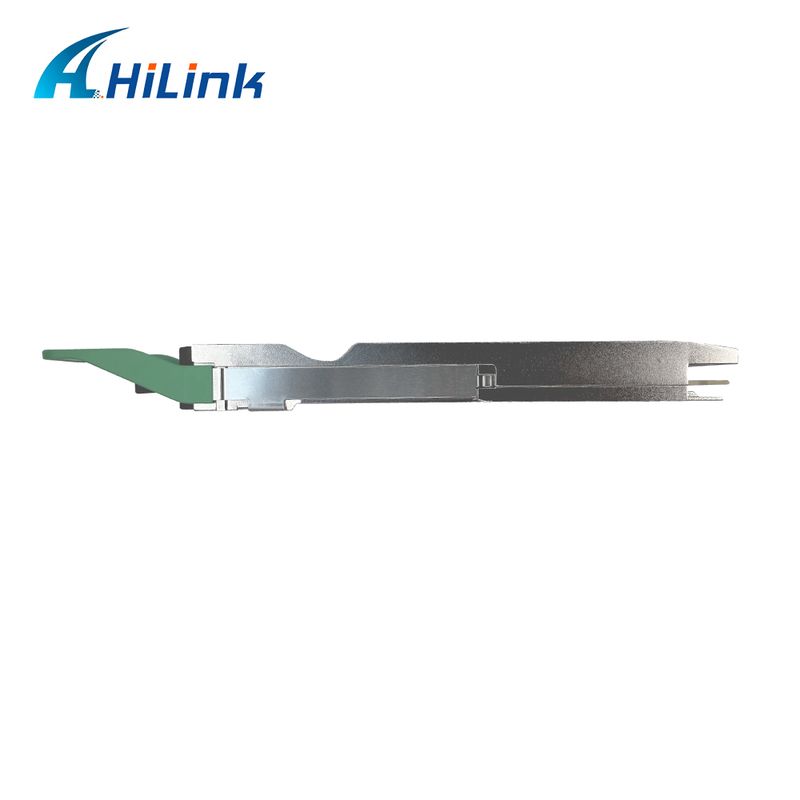

Product Images

Warranty & Quality Assurance:

All optical transceivers are brand new with new components and parts. We never use old or refurbished materials. Each unit undergoes functional testing and aging tests before shipment.

We provide a 3-year warranty for all optical transceivers from the date of shipment. OEM/ODM orders are available.
