Name: Accept Customize Hilink 100GHz 16 Channel DWDM MUX/DEMUX Dense Wavelength Division Multiplexing
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-DWDM-MUX/DEMUX
Price: 130.00 USD
Availability: InStock

En casa > productos > Solución del WDM >

Accept Customize Hilink 100GHz 16 Channel DWDM MUX/DEMUX Dense Wavelength Division Multiplexing

Place of Origin:

China

Nombre de la marca:

Hilink

Certificación:

CE Rohs

Model Number:

HL-DWDM-MUX/DEMUX

Contacta con nosotros

Solicitar una cita

Accept Customize Hilink 100GHz 16 Channel DWDM MUX/DEMUX Dense Wavelength Division Multiplexing

Detalles del producto

Product Name:

DWDM MUX and DEMUX

Fiber Type:

SMF-28e or customized

Center Wavelength(nm):

ITU 100GHz Grid

Oprating Wavelength:

C band (CH17-CH61)

Temperature:

-40~85°C

Connector:

SC LC

Condiciones de pago y envío

Minimum Order Quantity

1 pieces

Precio

Need to negotiate

Packaging Details

Plastic box+Carton

Delivery Time

5-8 working day

Payment Terms

T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance

Supply Ability

2000 Pieces/Week

Productos relacionados

el video

8CH DWDM MUX DEMUX 100 GHz 8 canales HL-DW-MUX-8CH LC/APC LC/UPC

Consiga el mejor precio

el video

CWDM 1*8CH 8 canales CWDM MUX/DEMUX 8CH 19 pulgadas 1U Sistema de dispositivos CWDM

Consiga el mejor precio

el video

8CH CWDM 1270nm-1410nm 8 canales CWDM DEMUX LGX Paquete Dispositivos CWDM

Consiga el mejor precio

el video

Chasis 5U de 19" OEO/DWDM MUX DEMUX Chasis de equipo de fibra óptica con EDFA/OLP/10G

Consiga el mejor precio

Contacta con nosotros

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Contacta ahora

Descripción del producto

Accept Customize Hilink 100GHz 16 Channel DWDM MUX/DEMUX Dense Wavelength Division Multiplexing

Features

C Band
2-44 channels DWDM Mux/Demux (CH17-CH61)
Channel spacing: 0.8nm(100GHz Grid)
Com port is simplex
Protocol transparent (10Mbps to 100Gbps)
Low insertion loss
Excellent channel isolation
Epoxy-free optical path
Compliant to G.657A1 standard
ISO 9001 manufacturing facility
Wide Operating Temperature: -40~+85℃

Applications

Channel Add/Drop
DWDM Network
Wavelength Routing
Fiber Optical Amplifier
CATV System

1xN DWDM Mux/Demux Module

Parameters
Channel Space (GHz)		100			200
Channel Number		1*4	1*8	1*16	1*4	1*8	1*16
Center Wavelength (nm)		ITU Grid
Center Wavelength Accuracy (nm)		± 0.05			± 0.1
Channel Passband (@-0.5dB) (nm)		0.22			0.5
Fiber Type		SMF-28e with 900um loose tube or customer specified
IL (dB)		1	1.5	2.2	1.7	2.9	3.8
Passband Ripple (dB)		0.35	0.4	0.5	0.35	0.4	0.5
Isolation (dB)	Adjacent Channel	25			28
	Non-Adjacent Channel	40
PDL (dB)		0.2
PMD (ps)		0.1
RL (dB)		45
Directivity (dB)		50
Maximum Optical Power (mw)		300
Operating Temperature (°C)		-40~85
Storage Temperature (°C)		-40~85
BOX Package (mm)		1008010 or 14011518
LGX Package		1U,2U
19’’ Rack mount Package		1U

Order details

2~44Channels available.
Com port: simplex or duplex.
Fiber connector: LC/SC or other.
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
DWDM Solutions and DWDM SFP/XFP.

Min.Order Quantity: 1pcs is also okay for sample to satisfy your need.

OEM/ODM is acceptable, so tell us your requirements.

Some solutions example:

Accept Customize Hilink 100GHz 16 Channel DWDM MUX/DEMUX Dense Wavelength Division Multiplexing 0

Product Description

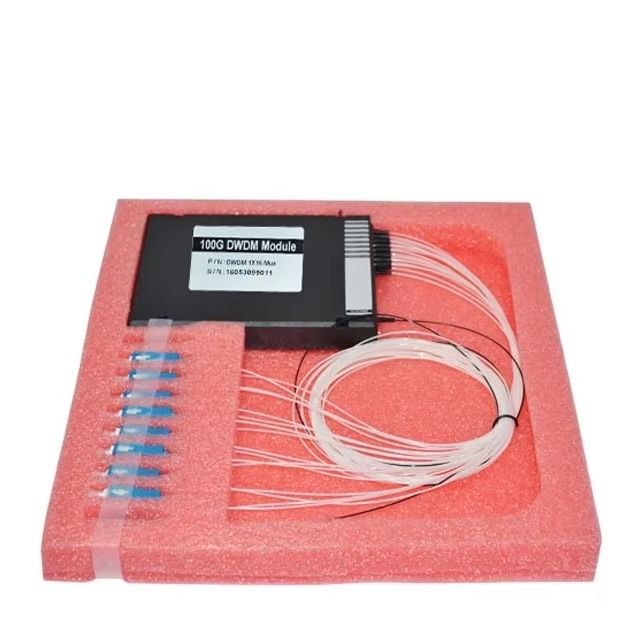

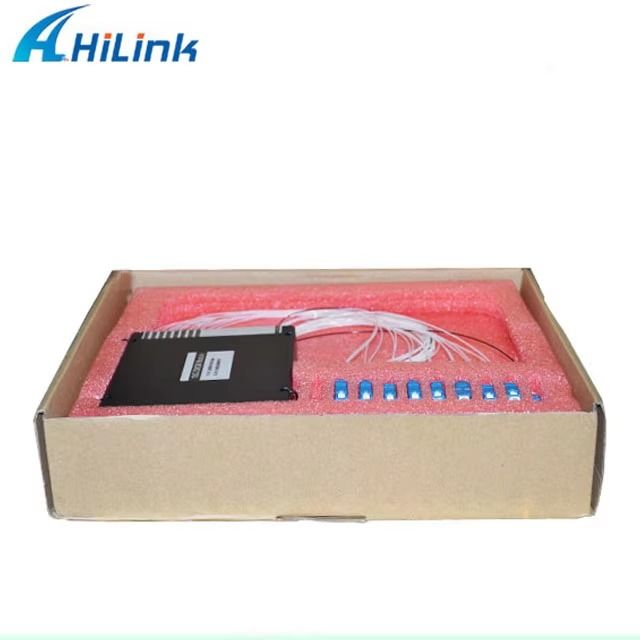

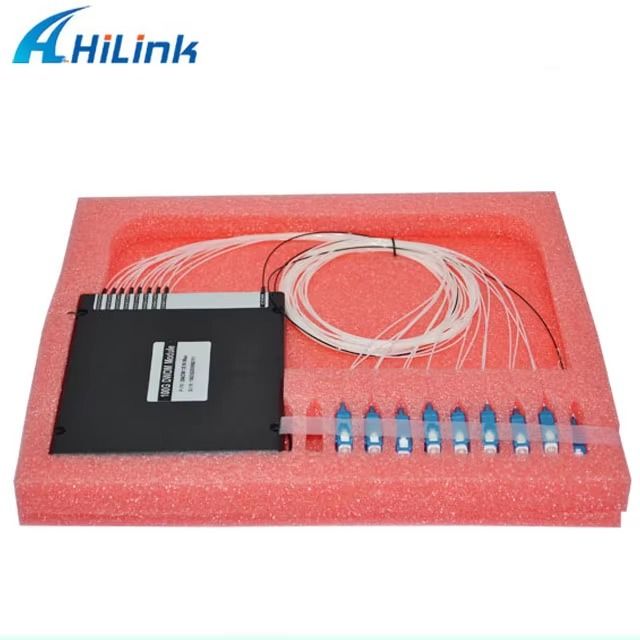

Real Picture

Accept Customize Hilink 100GHz 16 Channel DWDM MUX/DEMUX Dense Wavelength Division Multiplexing 1

Accept Customize Hilink 100GHz 16 Channel DWDM MUX/DEMUX Dense Wavelength Division Multiplexing 2

Accept Customize Hilink 100GHz 16 Channel DWDM MUX/DEMUX Dense Wavelength Division Multiplexing 3

Order details

2~44Channels available. Com port: simplex or duplex. Fiber connector: LC/SC or other

Package: ABS plastic box, LGX metal cassette box, 19inch rack mount. DWDM Solutions and DWDM SFP/XFP.

Shipment & Payment 1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc. 2. Payment: T/T, Western Union, Paypal and so on.

Guarantee:

›& Brand new.

›& OEM/ODM is available. ›& 100% through quality test and aging test. ›& 3 years warranty (From the date of shipment).
