Name: 25Gb/s 40Km SFP28 BIDI Transceivers LC single connector Hot pluggable Fully RoHS Compliant
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-25GSFP-BD-40
Price: 893.00 USD
Availability: InStock

En casa > productos > Módulo de transceptor SFP >

25Gb/s 40Km SFP28 BIDI Transceivers LC single connector Hot pluggable Fully RoHS Compliant

Place of Origin:

Guangdong, China

Nombre de la marca:

HILINK

Certificación:

CE FCC Rohs

Model Number:

HL-25GSFP-BD-40

Contacta con nosotros

Solicitar una cita

25Gb/s 40Km SFP28 BIDI Transceivers LC single connector Hot pluggable Fully RoHS Compliant

Detalles del producto

Products name:

25Gb/s 40Km SFP28 BIDI Transceivers

Connetor:

Simplex LC

Data rate:

25G

Distance:

40KM

Wavelength:

1270nm/1310nm

Temperature Range:

0℃ ~ +70℃

Certificación:

CE RoHS FCC

Type:

Fiber Optic Transceivers, 25GSFP

Condiciones de pago y envío

Minimum Order Quantity

1pcs

Precio

Negociable

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Delivery Time

5-8workingdays

Payment Terms

Western Union,T/T,L/C

Supply Ability

100pcs/month

Productos relacionados

Transceptor óptico de fibra SFP CWDM Hilink 1.25G 1350nm 40km para centro de datos

Consiga el mejor precio

25G ZR SFP 80KM LC 25G Ethernet SFP Transceptor DOM 1310nm Transceptores de fibra óptica

Consiga el mejor precio

1000BASE-ZX 200KM 1.25G 1550nm 200KM LC SMF Transceptor SFP

Consiga el mejor precio

1000BASE 1.25G 1550nm 120KM Conector LC WDM SFP módulo de transceptor

Consiga el mejor precio

Contacta con nosotros

86-755-8317-6243

Contacta ahora

Descripción del producto

25Gb/s 40Km SFP28 BIDI Transceivers LC single connector Hot pluggable Fully RoHS Compliant

Features

Operating data rate up to 25.78Gbps

Up to 40km transmission distance

High sensitivity APD photodiode and TIA

Rate Adaptation

LC single connector

Hot pluggable 20pin connector

Low power consumption <1.5 W

Single +3.3V±5% power supply

Compliant with SFF-8472

Fully RoHS Compliant

Operating temperature range: Commercial: 0°C to +70°C Industrial: -40°C to +85°C

Applications

25GE BASE-LR Ethernet

CPRI Option 10/eCPRI

Product Description

The 25Gb/s SFP28 BIDI Transceivers is intended for 40km reach service from 24.33Gb/s to 25.78Gb/s BI-direction single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.

The low jitter and low bit error rate optical assembly features a DML laser transmitter and APD/TIA receiver. It utilizes internal clock and data recovery (CDR) units on transmitter and the receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

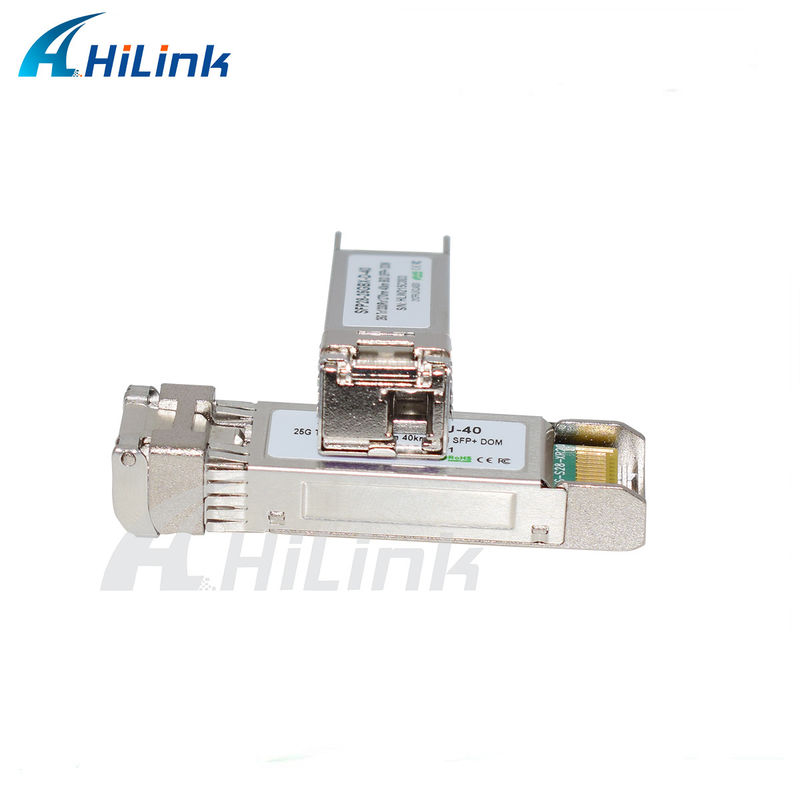

25Gb/s 40Km SFP28 BIDI Transceivers LC single connector Hot pluggable Fully RoHS Compliant 0

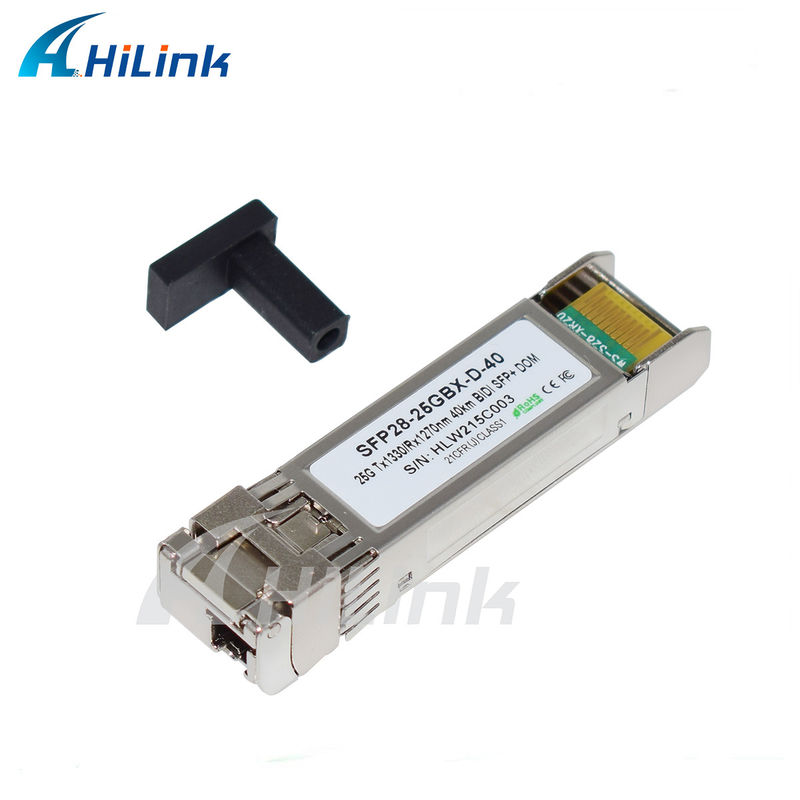

25Gb/s 40Km SFP28 BIDI Transceivers LC single connector Hot pluggable Fully RoHS Compliant 1

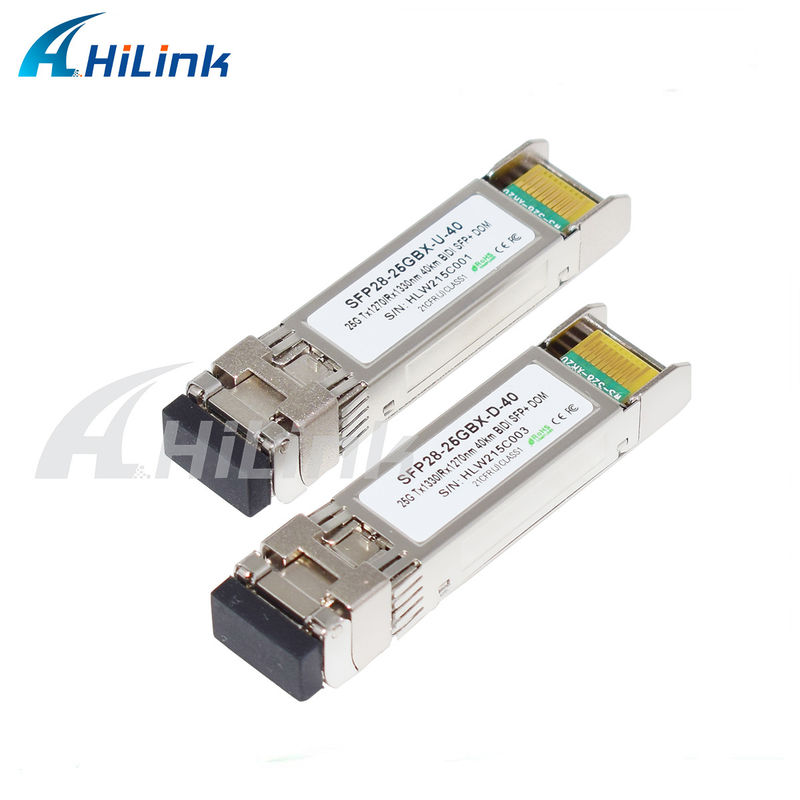

25Gb/s 40Km SFP28 BIDI Transceivers LC single connector Hot pluggable Fully RoHS Compliant 2

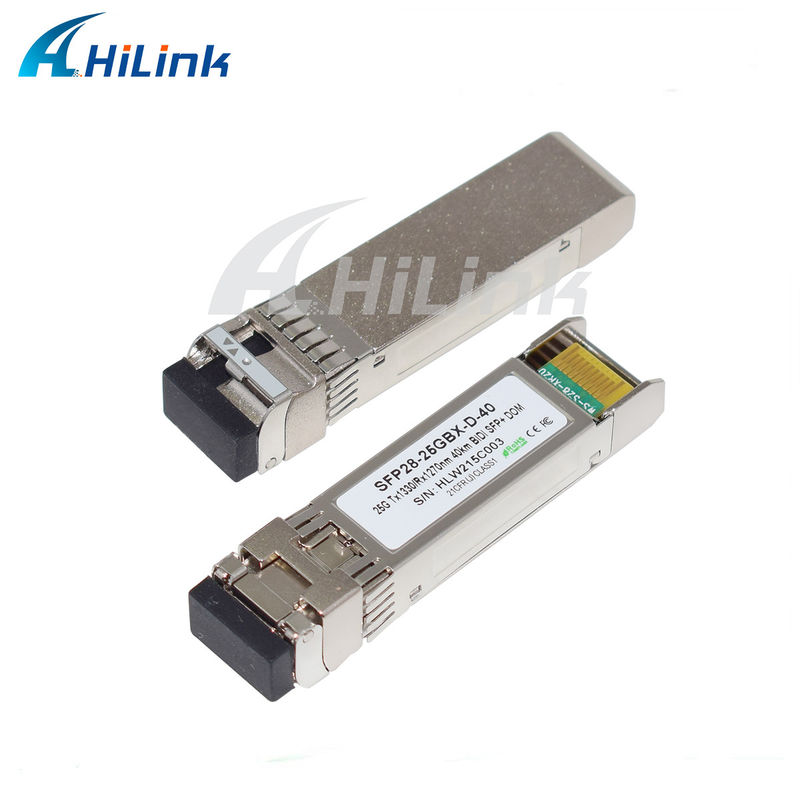

25Gb/s 40Km SFP28 BIDI Transceivers LC single connector Hot pluggable Fully RoHS Compliant 3

Our Service

OEM and ODM

OEM/ODM order is available.

Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
